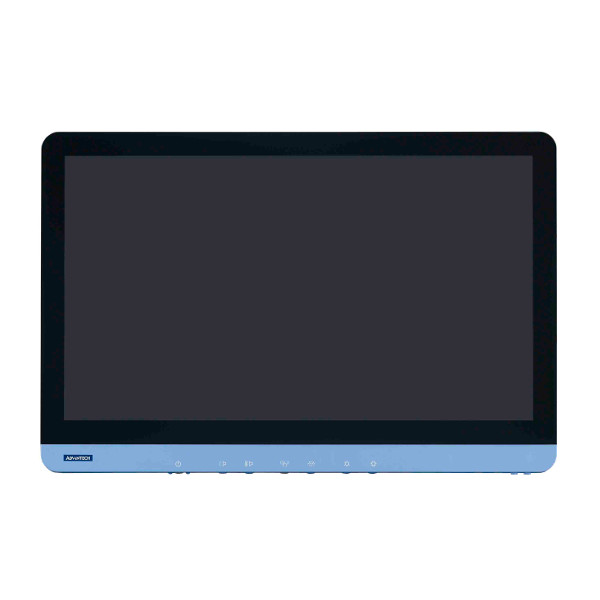

Widescreen Fanless Medical Panel PC with 24" IPS LCD LED, Full HD, projected capacitive touch, Intel Celeron 3955U 2.0GHz CPU, 4GB DDR4, 128GB SSD, DP, HDMI, 2xCOM, 6xUSB, 2xLAN, 1xPCIe x4, 2xMini PCIe, Audio, power adapter 100-240V AC
POC-WP243-C11D-ACE
Advantech
SKU: 56568400
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Wall VESA 100, Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
CPU Support Type
Celeron
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel HD Graphics 510, Intel HD Graphics 520
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Extension Slots
PCI Express x4
1
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Display Port
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
583 mm
Height
386 mm
Depth
69 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class B
Medicine
EN 60601-1
Dimensions
Net Weight
8.7 kg
Gross Weight
9 kg
