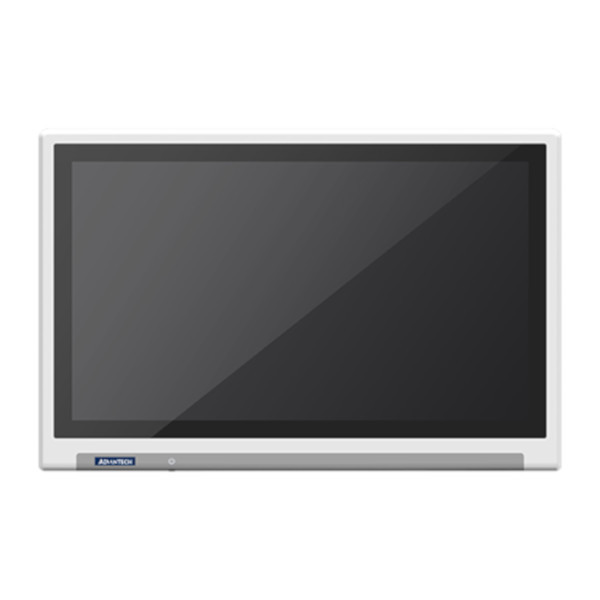

Widescreen Fanless Medical Panel PC with 21.5" TFT LCD, PCAP touch, Intel Core i5-7300U, 4GB DDR4, SATA HDD/SSD, HDMI, Display Port, 2xCOM(opt.), 4xUSB, 2xLAN, 1xMini PCIe, M.2 slot, Audio, power adapter 90-240V AC
POC-W213L-B00D-ACE
Advantech
SKU: 56844300
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, Display Port
System Power Input
Input Voltage AC
90..240 V
Software
Operating System Compatibility
Linux OS, Windows IoT Enterprise 10
Dimensions and weight
Width
550 mm
Height
360 mm
Depth
65 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE
Safety
CCC
Dimensions
Net Weight
6.8 kg
Gross Weight
7.5 kg
