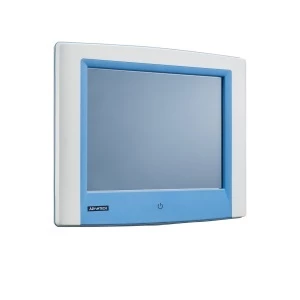

Widescreen Fanless Medical Panel PC with 12,1" TFT LCD, projected capacitive touch, Intel Celeron J1900, DDR3L-1600 8GB, 1x2.5" SATA, 1xHDMI, 2xCOM, 5xUSB, 1xLAN, 1xPCIe, Audio, Bluetooth
POC-128-C11D-ATE
Advantech
SKU: 07465300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
600 Cd/m2
Contrast Ratio
700~700
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
8 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Extension Slots
Total
1
PCI Express x4
1
Connectors
Connectors
DB15 VGA, HDMI, 5xUSB, Mic In, Line Out, DC Input, 2xCOM (terminal block)
System Power Input
Input Voltage DC
18..18 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
105 W
Supported Types of Power Supply
Li-battery Pack
Software
Operating System Compatibility
Windows 7, Windows 8.1
Dimensions and weight
Width
348 mm
Height
287 mm
Depth
92 mm
Operating Conditions
Operating Temperature
0..40 °C
Shock
20G peak acceleration (11ms duration)
Standards and Certifications
Certifications
CE, FCC Class B
Medicine
UL 60601-1, EN 60601-1
Dimensions
Net Weight
7.95 kg
Gross Weight
4.5 kg
Documentation
