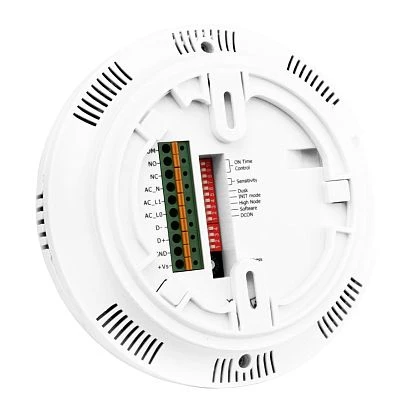

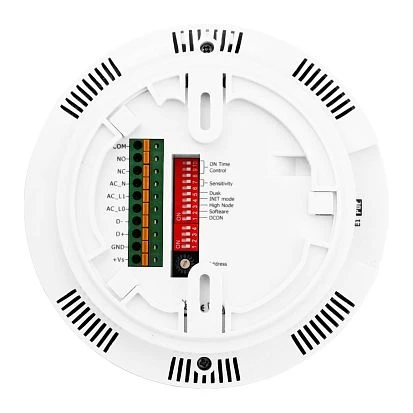

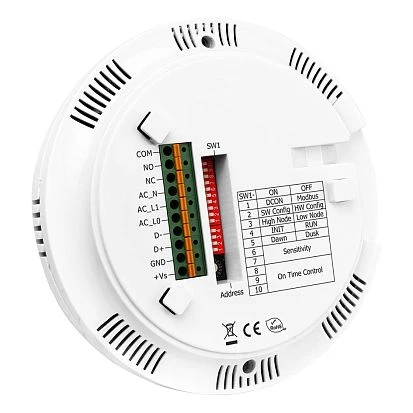

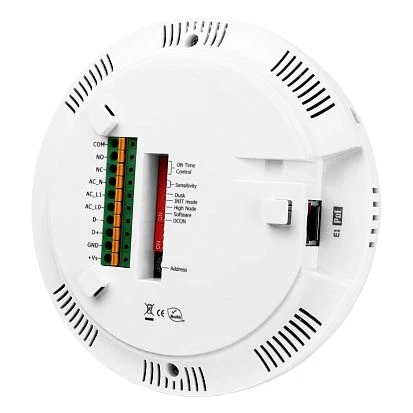

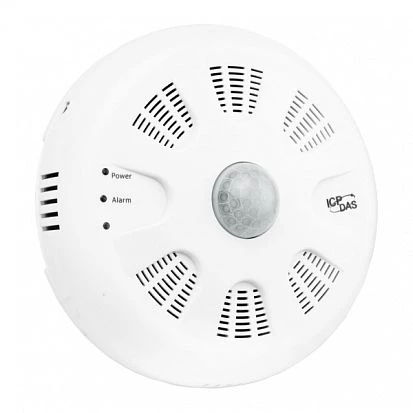

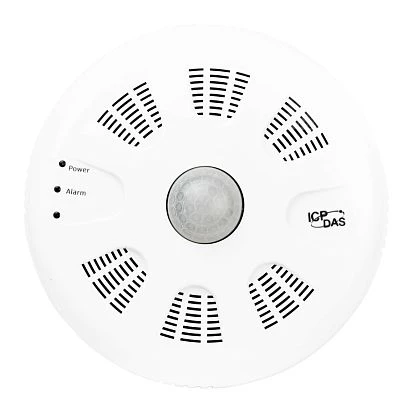

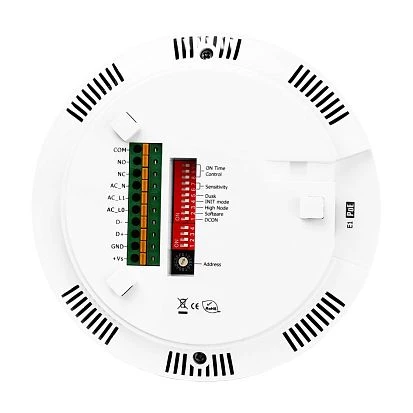

PIR Motion Sensor, Temperature and Humidity Sensor Module (Ethernet), 10 meters, 2xDI, 1xRelay Output, Ethernet, PoE, RS485
PIR-231-E
ICP DAS
SKU: 56898900
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Ceiling mounting
Protection Level of Chassis
IP20
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, DCON slave
Ethernet
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
18..48 V
Interfaces
RS-485
1
Sensors
Measuring Range
-40...+120 °C
Resolution
0.01 °C
Accuracy (+/-)
0.5 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Detection range
10 m
Dimensions and weight
Width
150 mm
Height
53 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
