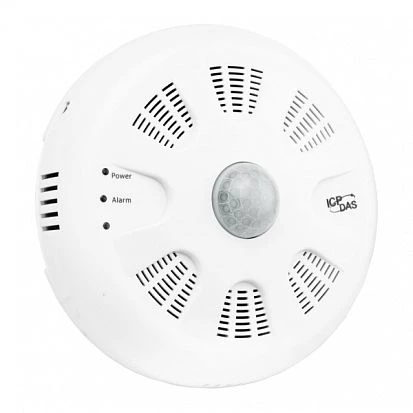

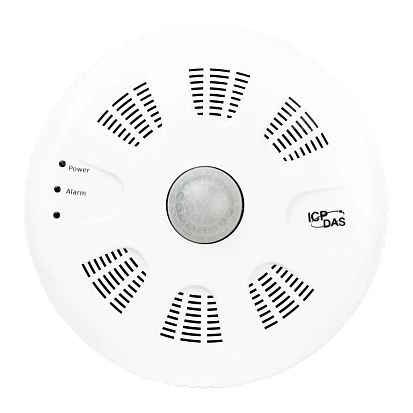

PIR-230-BLE

PIR Motion Sensor, Temperature and Humidity Sensor Module (Bluetooth), 2xDI, 1xRelay Output 10A@250VAC, 24...48VDC-in, PoE

Price on request ()
Mounting Configuration:
Wall, Ceiling mounting
RS-485:
1
Modbus TCP:
Slave
Measuring Range:
-40...+120 °C
Measuring Range:
0…100%
Specification
Vendor
Name:
ICP DAS
Construction
Construction Chassis:
Plastic Chassis
Mounting Configuration:
Wall, Ceiling mounting
Protection Level of Chassis:
IP20
Interfaces
RS-485:
1
Industrial Protocols
Modbus TCP:
Slave
Modbus RTU:
Slave
DCON:
Slave
Temperature Sensor
Measuring Range:
-40...+120 °C
Resolution:
0.01 °C
Accuracy (+/-):
0.5 °C (at 0 to 60°C)
Humidity Sensor
Measuring Range:
0…100%
Resolution:
0.1 %
Accuracy (+/-):
5 %
System Power Input
Input Voltage DC:
18 ... 48 V
Power-over-Ethernet:
PoE
Power Consumption:
2.5 W
Power Input Protection:
Reverse Polarity
Dimensions and weight
Width:
150 mm
Height:
53 mm
Standards and Certifications
EMS:
IEC 61000-4-2, IEC 61000-4-4

Dimensions

Weight

weight brutto: 0.5 kg
