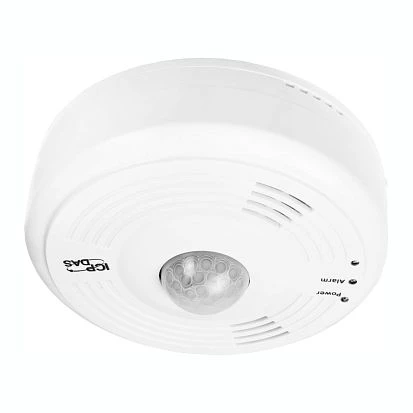

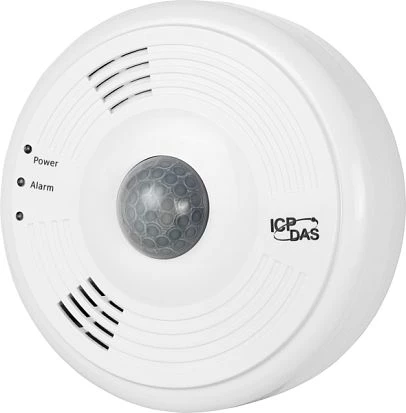

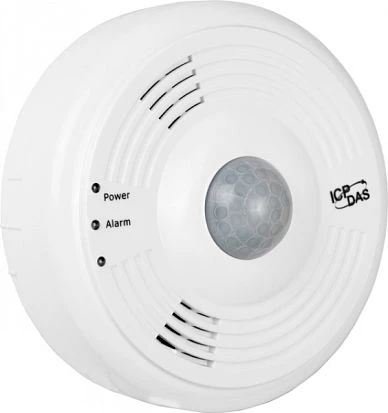

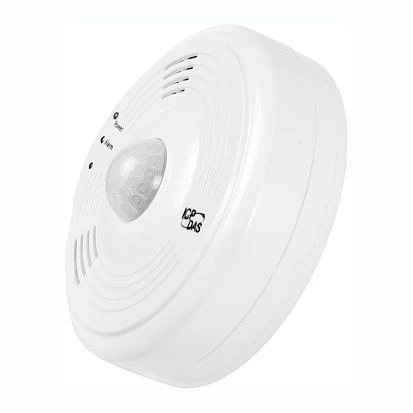

PIR Temperature Sensor and Motion Sensor Module, power relay 250V/10A (110~220 VAC)(RoHS)
PIR-130-AC
ICP DAS
SKU: 06861400
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Ceiling mounting
Protection Level of Chassis
IP20
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
System Power Input
Input Voltage DC
110..220 V
Interfaces
RS-485
1
Sensors
Measuring Range
-25...+100 °C
Resolution
0.06 °C
Accuracy (+/-)
2 °C
Detection range
4 m
Operating Conditions
Operating Temperature
0..35 °C
Dimensions and weight
Width
121 mm
Height
52 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
Documentation
