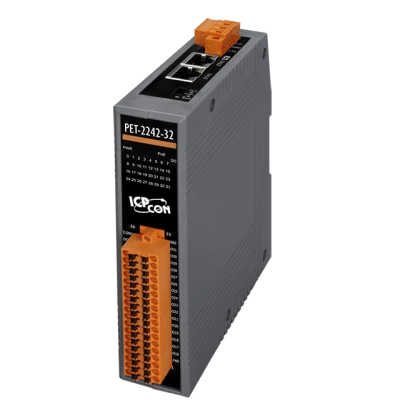

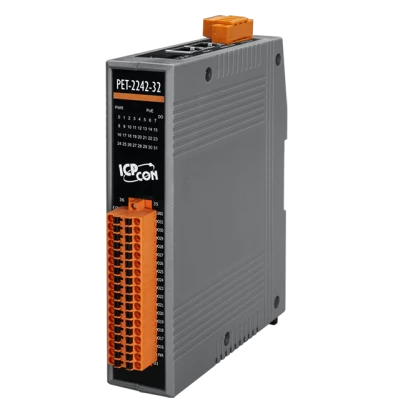

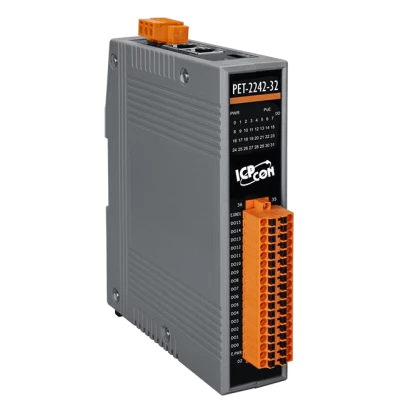

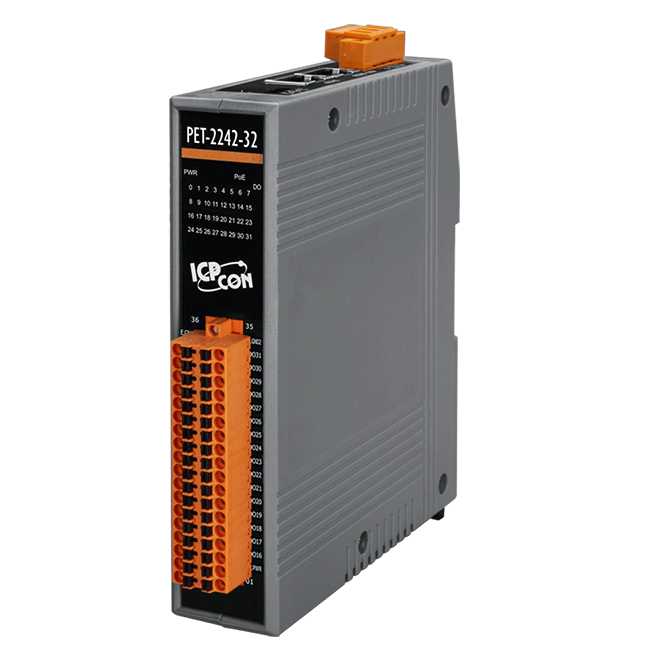

PET-2242U-32
ICP DAS
SKU: 11079900
Ethernet I/O Module with 2-port Ethernet Switch, 32-ch Open Collector Digital Output (RoHS) 3.5-50VDC, PoE, 10-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
600 mA
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
31 mm
Depth
126 mm
Height
157 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.24 kg
Gross Weight
0.24 kg
