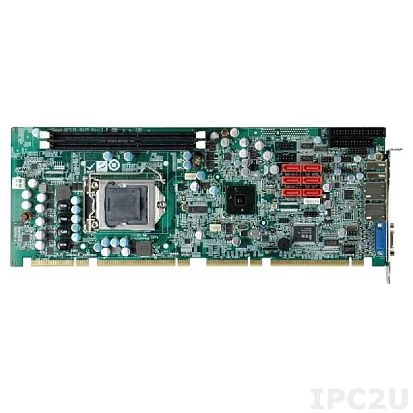

PICMG 1.3 Intel Core i7 LGA1156 CPU Card with VGA/Dual GbE LAN/6xSATA II/14xUSB
PCIE-Q57A
IEI
SKU: 05534000
End-of-life product
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Socket
LGA1156
Chipset
Chipset
Intel Q57
Memory
Form-factor
DDR3
Socket Type
2xDIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
VGA
Ethernet
Controller Type
Intel 82578DM 10/100/1000 Mbps, Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
10
USB 2.0
10
LPT
LPT
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
IRDA, 10-pin DIO, 34-pin FDD, 26-pin LPT, 2x10-pin RS-232, 8x4-pin USB 2.0, 6-pin KB/MS, 4-pin ATX, 10-pin Audio, 6xSATA
Connectors
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126 mm
Length
338 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
