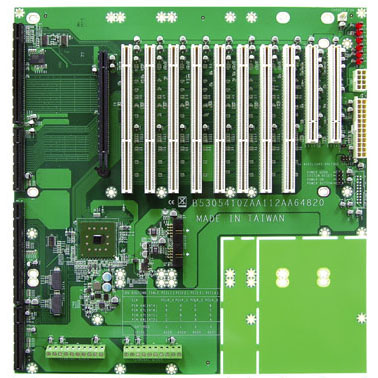

PBPE-12AA64
PBPE-12AA64
Portwell
SKU: 05137100
1xPICMG, 1xPCI-Express x16, 8xPCI-X, 2xPCI Slots PICMG 1.3 Backplane
Price on request
Add to Cart
Available on order
Ask for testing
Compare
To favorite
Available on order
Specification
Extension Slots
Total
12
PCI Express x16
1
PICMG
1
PCI
2
PCI-X
8
Dimensions and weight
Width
327 mm
Depth
317 mm
Dimensions
Net Weight
0.43 kg
Gross Weight
0.6 kg
