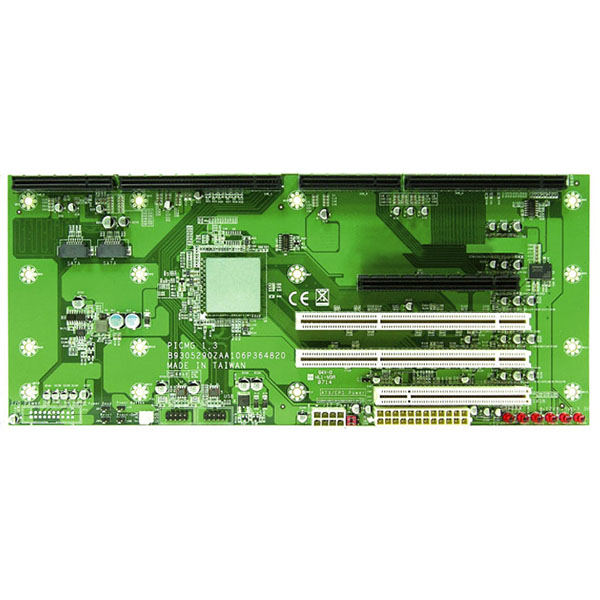

PBPE-05A364
PBPE-05A364
Portwell
SKU: 05128000
Passive PICMG 1.3 Backplane, 1xPICMG, 1xPCI, 1xPCI-Express x8, 2xPCI-X Slots
Price on request
Add to Cart
Available on order
Ask for testing
Compare
To favorite
Available on order
Specification
Extension Slots
Total
5
PCI Express x8
1
PICMG
1
PCI
1
PCI-X
2
Dimensions and weight
Width
327 mm
Depth
140.2 mm
Dimensions
Gross Weight
0.3 kg
