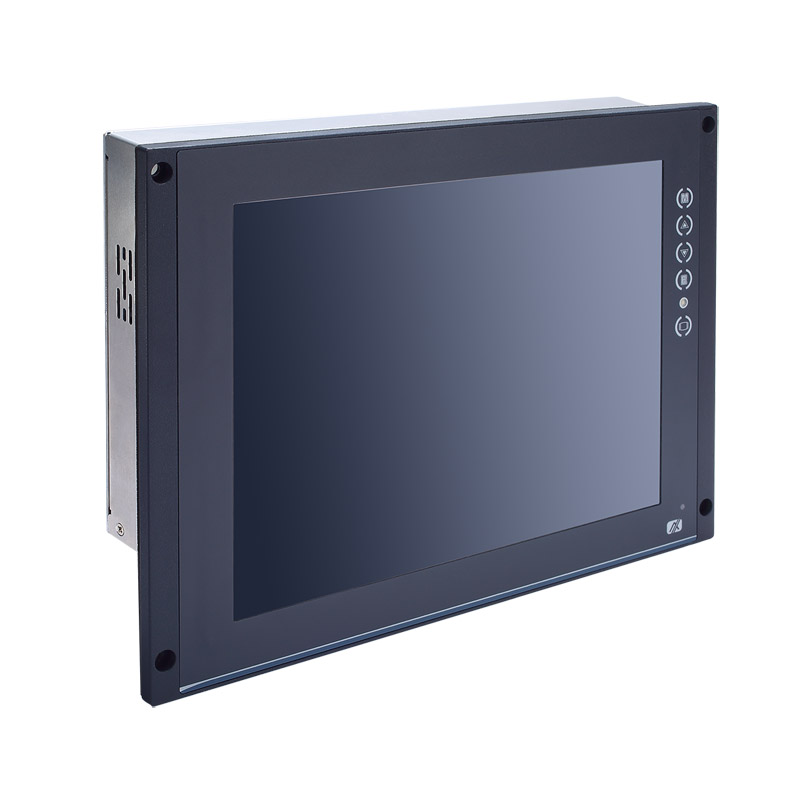

12.1" XGA Railway Transportation Touch Display with EN50155/EN45545, 1024x768, 600 nits, resistive touch (RS-232), VGA, HDMI, DVI-D, RS-232 for IR remote control, Line In, power supply 24V to 110V DC
P712-RS1-M
AXIOMTEK
SKU: 09687200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP40
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
600 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
Interface
RS-232
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, DVI-D, DB15 VGA, HDMI, Line In, DC Input
System Power Input
Input Voltage DC
24..110 V
Operating Conditions
Operating Temperature
-25..55 °C
Dimensions and weight
Width
330 mm
Height
245 mm
Depth
50.2 mm
Standards and Certifications
Certifications
CE, FCC
Rolling Stock
EN 50155, IEC 61373, EN 50121-3-2
Dimensions
Net Weight
2.3 kg
Gross Weight
4.36 kg
