1U 16-Port RS-232/422/485 Rackmount Serial Device Server, -40...+75
NPort 5650-16-T
MOXA
SKU: 05954300
Price on request
Available on order
Available on order
NPort 5650-16-T

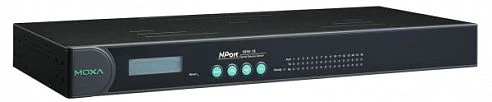

Serial interface server NPort 5650-16-T is manufactured by MOXA to transmit data from industrial equipment with RS-232/422/485 interfaces via Ethernet or Wi-Fi at the transfer rate of 921600 bit/s. The server is housed in a metal housing with 1 Ethernet port and RS-232/422/485 ports (16 pcs.). The server is provided in a 19” rack mounting configuration. It interacts with major protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. The configuration by means of Telnet, an embedded display and a keyboard, or a Web-interface is available. The server is compatible with all standard operating systems. It works within a broad temperature band of -40 ... 75°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
16
RS-232/422/485
16
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.34 kg
