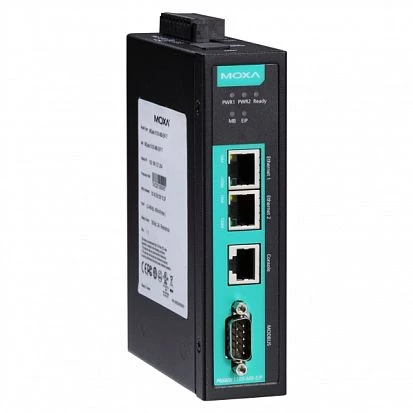

MOXA MGate 5105-MB-EIP

1-port Modbus-to-EtherNet/IP gateway, 0 to 60C operating temperature

This product is not available in your region
Vendor:
MOXA
COM Total:
1
RS-232/422/485:
1
COM Connector:
1xDB9M
Total Ethernet:
2
EtherNet/IP:
Yes
Modbus TCP:
Yes
Modbus RTU:
Yes
Modbus ASCII:
Yes
Specification
Vendor
Name:
MOXA
Construction
Construction Chassis:
Metal Chassis
Mounting Configuration:
Wall, DIN-Rail mount
Protection Level of Chassis:
IP30
Interfaces
COM Total:
1
RS-232/422/485:
1
RS-232/422/485 with Isolation:
2000 V
COM Connector:
1xDB9M
Network Adapter
Total Ethernet:
2 (1 IP, Ethernet cascade)
10/100 Mbit/s:
2 (1 IP, Ethernet cascade)
Network Technology
Protocol:
EtherNet/IP, Modbus/TCP, MQTT
Industrial Protocols
EtherNet/IP:
Yes (Adapter and scanner)
Modbus TCP:
Yes
Modbus RTU:
Yes
Modbus ASCII:
Yes
MQTT:
Client
Digital Output
Total channels of digital output:
1
Type:
Signal Relay
Cooling
Type:
Fanless
LED / Controls
LED:
10/100M LED, READY LED, PWR1, PWR2, COM-ports LED
Control Switches:
1xReset
Setup of Operation Mode:
Telnet, Console Port, Web-interface
Connectors / Cables
Connectors:
Console Port RS-232 (RJ-45), MicroSD card slot
System Power Input
Input Voltage DC:
12 ... 48 V
Power Consumption:
5.46 W (12 VDC)
Current:
0.455 A (12 VDC)
Power Supply Reserve input Voltage DC:
12 ... 48 V
Power Consumption Reserve:
5.46 W (12 VDC)
Current Reserve:
0.455 A (12 VDC)
Operating Conditions
Temperature:
0 ... 60 °C
Humidity:
5 ... 95 %
MTBF:
513139 h
Storage Conditions
Temperature Range:
-40 ... 85 °C
Dimensions and weight
Width:
36 mm
Height:
105 mm
Depth:
140 mm
Standards and Certifications
Certifications:
CE, FCC
Vibration And Shock:
IEC 60068-2-27, IEC 60068-2-64
Freefall:
IEC 60068-2-32
Safety:
UL 508, EN 60950-1
EMS:
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
EMI:
EN 55022 Class A, FCC Part 15 Subpart B Class A
Oil And Gas:
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Explosion safety:
IECEx
Description of goods
Industrial gateway MGate 5105-MB-EIP. 1-port converter MGate 5105-MB-EIP is designed by MOXA for industrial protocol conversion in either direction: Ethernet/IP - Modbus RTU/ASCII, Ethernet/IP - Modbus TCP, Modbus RTU/ASCII - Modbus TCP. The gateway supports both configurations of Ethernet/IP: adapter and scanner. The device secures easy and prompt setup using a web console, a special Windows utility and provides complete data packet for analysis and diagnostics. The model is housed in a fanless metal industrial grade chassis. MOXA’s protocol converter MGate 5105-MB-EIP: description and features: Ethernet/IP: 16 connections for Adapter Mode and 100 connections for Scanner Mode. Modbus: 16 devices for TCP Slave Mode and 32 devices for TCP Master Mode. Packet size: 2048 bit. Ethernet ports cascading facilitates connection and allows integrating several gateways over standard network cable, so that no separate switch is required. Web interface provides several access levels (administrator, user) and does not require installation of extra software. Data Mapping and Data View show all online nodes statuses. Analysis and diagnostics tools for each protocol provide information for traffic optimization and troubleshooting. A Micro SD card slot can be used to store and to back up the configuration and system logs. The autoloading function allows restoring and exporting the settings to other gateways. The contactless galvanic isolation of a Modbus port (2 kV) eliminates the risk of chain damage and communication disruption. There is a built-in redundant power input and a relay output for alarm notifications. Mean time between failures (MTBF) – around 60 years. Hence, the industrial gateway MGate 5105-MB-EIP from MOXA ensures easy incorporation of any type of Modbus devices into Ethernet/IP network at an affordable price. In addition, the device features great protection against physical impact (IEC 60068-2-6/27/32) and electromagnetic exposure (EN-55022/55024/61000-4, FCC), it is capable of operation in aggressive industrial environment (C1D2, ATEX Zone 2, IECEx). MOXA’s MGate 5105-MB-EIP is a winner of 2015 Engineers’ Choice Award. If you have any questions on technical and software opportunities of the gateway, its connection and configuration, contact our expert engineers in Moscow or Saint-Petersburg.

Dimensions

Weight

weight brutto: 0.8 kg
weight netto: 0.507 kg
