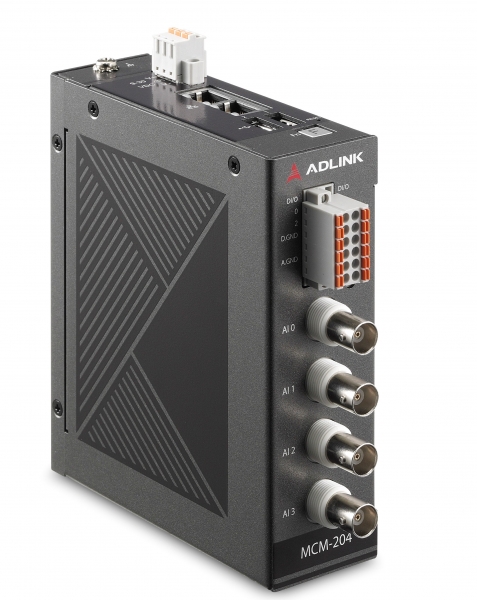

MCM-204
ADLink
SKU: 09285900
Standalone Ethernet DAQ with 4-ch AI, 24-bit, 128KS/s, 4-ch DI/O performance, ARM Cortex-A9 CPU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-1.25 V, +/-10 V
Sampling rate
128 Hz
Differential channels
4
Digital Input
Total channels of digital input
4
Digital Output
Total channels of digital output
4
Type
Open collector
System Power Input
Input Voltage DC
9..30 V
Dimensions and weight
Width
40 mm
Depth
110.5 mm
Height
126.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Dimensions
Net Weight
2 kg
Gross Weight
2 kg
