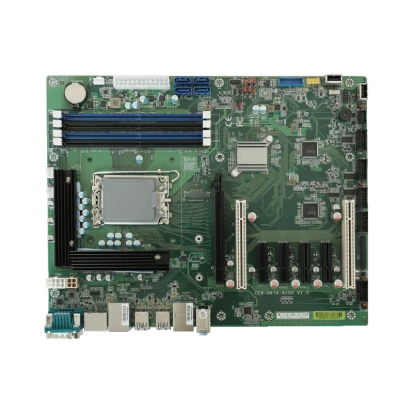

ATX Motherboard, Intel 12/13th Gen Core i9/i7/i5/i3/Pentium/Celeron CPU, Q670E Chipset, Up to 128GB DDR4 RAM, HDMI/DP/VGA, 1x2.5GbE LAN, 1xGbE LAN, 8xUSB 3.2, 2xUSB 3.2 Header, 4xUSB 2.0, 6xCOM, GPIO, 4xSATA, 1xM.2 Key-M, 1xPCIe x16, 4xPCIe x4, 2xPCI
MB-i93QA-Q670
Arbor
SKU: 57987300
Price on request
Available on order
Available on order
System Architecture
Form Factor
Micro ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
14
USB 2.0
4
USB v3.x
10
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALS888S
Drive interfaces
SATA 3
4
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
8
PCI Express x16
1
PCI Express x4
4
M.2
1
M.2 Form Factor
2242 M, 2280 M
PCI
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
24-pin ATX, 4-pin ATX, 8-pin ATX
Connectors

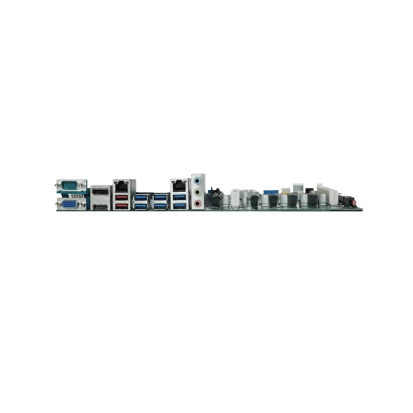

DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 8xUSB, Audio (in/out/Mic), Display Port
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
244 mm
Length
304.8 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.9 kg
Gross Weight
1.4 kg
