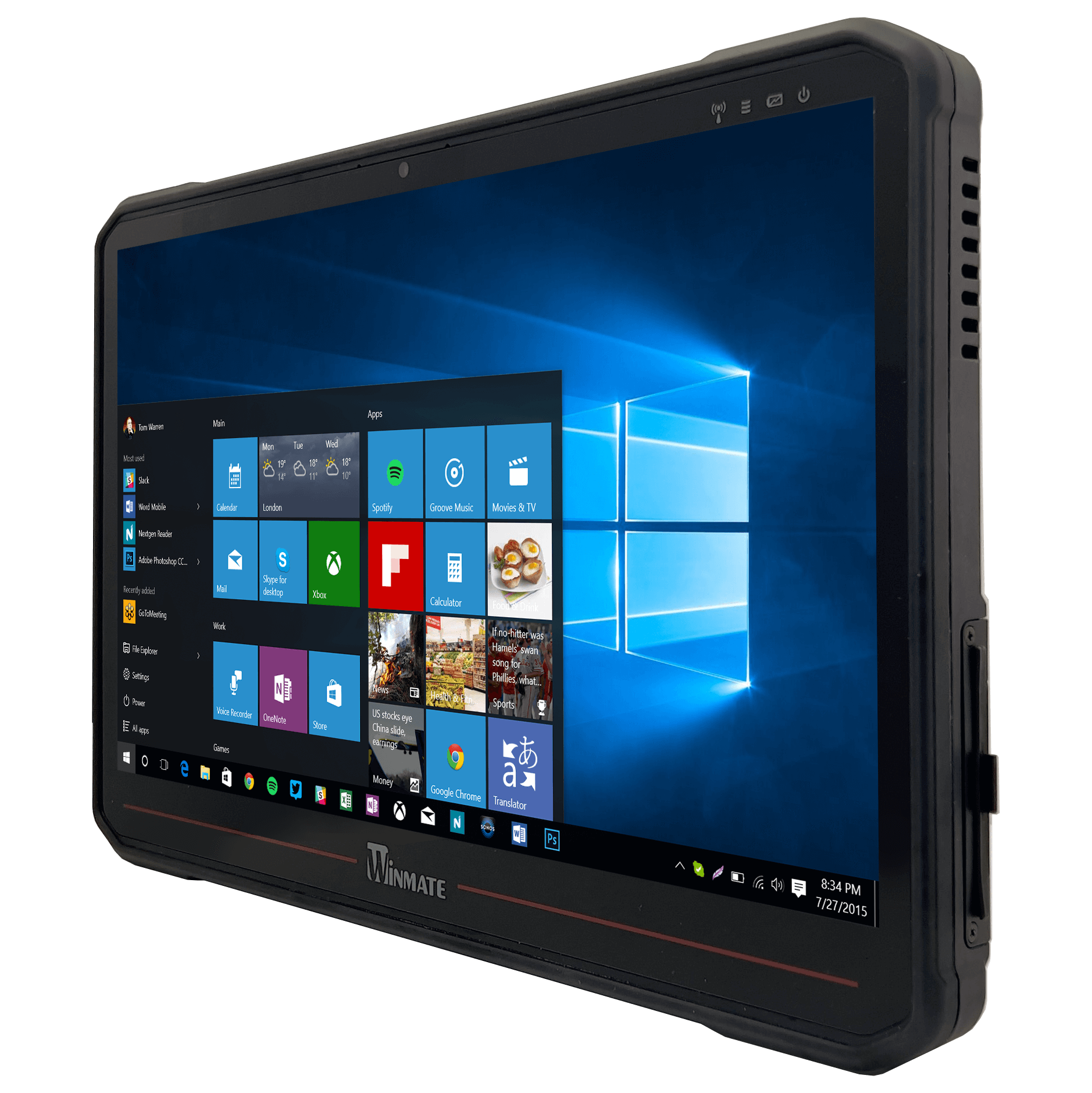

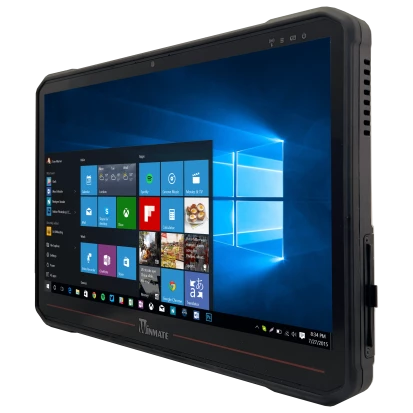

14" Rugged Tablet PC, IP65, 1920x1080, 700cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 4GB DDR4 RAM, 128GB SSD, 3xUSB 3.0 Type-A/C, GbE LAN, MicroSD, SIM, Wi-Fi/BT/GPS, 8MP/2MP Cam, Win 10 IoT, 2400/3500mAh int/ext Bat, 19VDC-in, -20..60C
M140TG
Winmate
SKU: 10581300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LED Display
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
CPU onboard
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
3
USB v3.x
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
Optional
RFID Reader
Optional
Smart Card Reader
Optional
Sensors
Light Sensor, G-sensor, Gyro
Antenna characteristics
Cellular interfaces
4G (Optional), 5G
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
RJ45 Ethernet, 2xUSB, Audio (in/out/Mic), SIM Card Slot, MicroSD card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3500 mA*h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
2400 mA*h
Additional Battery Hotswap
No
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
341.91 mm
Height
224.67 mm
Depth
25.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MILSTD810H Method 516.8, 4 ft
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.7 kg
Gross Weight
2.2 kg
