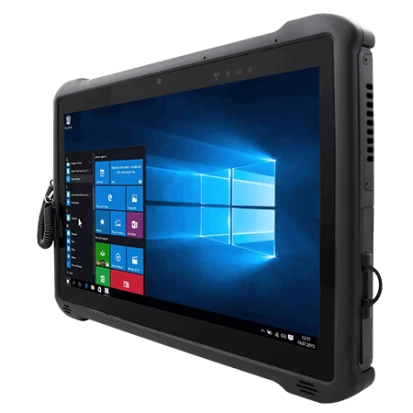

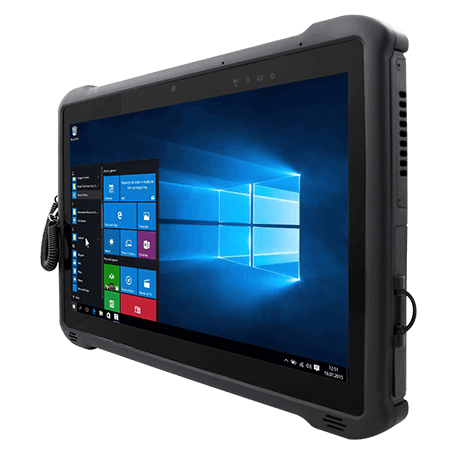

11.6" Rugged Tablet PC, IP65, 1920x1080, 850cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 8GB DDR4 RAM, 256GB NVME SSD, 1xUSB 3.0, 1xUSB 3.0 type-C, MicroSD, Smart Card Reader, SIM, Wi-Fi/BT/GPS, Audio, 2MP&8MP Cam, 4558 mAh Bat, 19VDC-in, Win 10 IoT
M116TG
Winmate
SKU: 10338600
Price on request
Available on order
Available on order
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
11.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
850 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Socket
CPU onboard
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
SIM Card slots
Yes, 1, Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
RFID Reader
Optional
Sensors
Light Sensor, G-sensor, Gyro
Antenna characteristics
Cellular interfaces
4G (Optional), 5G
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED, SSD LED
Controls
On/Off, Control Buttons
Connectors
Connectors
RJ45 Ethernet, 2xUSB, Audio (in/out/Mic), MicroSD card slot, Micro HDMI, Micro-SIM card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
4558 mA*h
RunTime Battery 1
8 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows IoT Enterprise 10
Dimensions and weight
Width
300.67 mm
Height
201.97 mm
Depth
22.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MIL-STD-810H Method 516.8, 4 ft
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
1.5 kg
Gross Weight
1.9 kg
