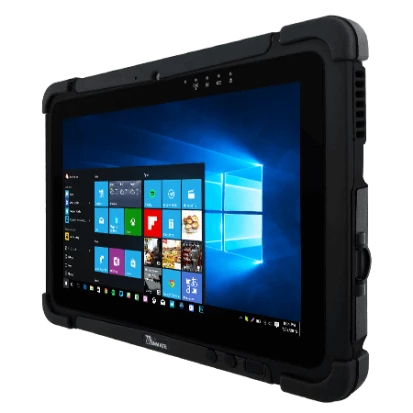

10.1" Rugged LED Tablet PC, 1920x1200, P-Cap Touch, Intel 11th Gen Core i5-1135G7 2.4GHz CPU, 8GB DDR4 RAM, 256GB SSD, 2xUSB 3.0 Type-A/Type-C, Wi-Fi, BT, GPS, SIM, Audio, 1xMicro SDXC, TPM 2.0, 19VDC-in, Battery 10.8V 4700mAh, Win 10 IoT, -20..60C
M101TG
Winmate
SKU: 10077500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
Micro HDMI
Ethernet
Total Ethernet
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Storage Cage
Number Of Cage External
1
Installed drive
Drive Type
SSD
1st Storage Capacity
256 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED, SSD LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, MicroSD card slot, Micro-SIM card slot, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
4700 mA*h
RunTime Battery 1
8 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
271.9 mm
Height
197.3 mm
Depth
19.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MIL-STD-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.3 kg
Gross Weight
2.05 kg
