8" Medical Tablet PC, 1024x768, 300cd/m2, PCAP Touch, IP54, Intel Atom x5-Z8350 1.84GHz CPU, 2GB DDR3L RAM, 64GB eMMC, MicroSD, Micro-USB, 1xRS232, 2MP Front, 8MP Rear, WiFi/BT, 1D/2D Barcode, NFC, Audio/Mic, 4000mAH, 5VDC-In, -10..45C
M0830-M
Arbor
SKU: 57852200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Chassis
IP54
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
8 "
Maximum resolution
1024x768 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
400~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Cherry Trail
Processor Installed
Intel Atom x5-Z8350
Socket
CPU onboard
Max CPU frequency
1.84 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
1
USB 2.0
1
Drive interfaces
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
NFC
Yes
Antenna characteristics
Bluetooth
v4.1
Connectors
Connectors
1xMicro USB, MicroSD card slot

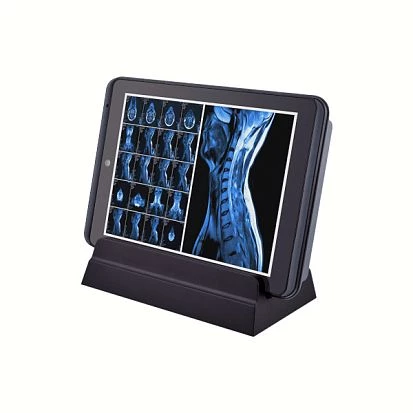

Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
10 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4000 mA*h
RunTime Battery 1
3.5 h
Software
Operating System Compatibility
Android, Windows IoT Enterprise 10
Dimensions and weight
Width
208.5 mm
Height
150.6 mm
Depth
27 mm
Operating Conditions
Operating Temperature
-10..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.52 kg
Gross Weight
0.75 kg
