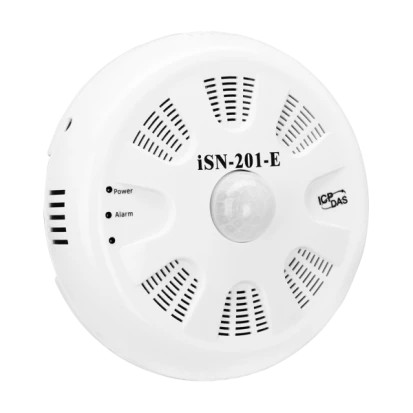

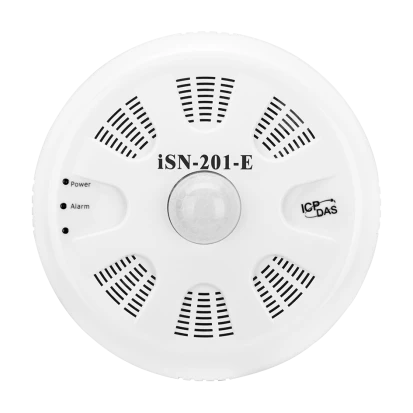

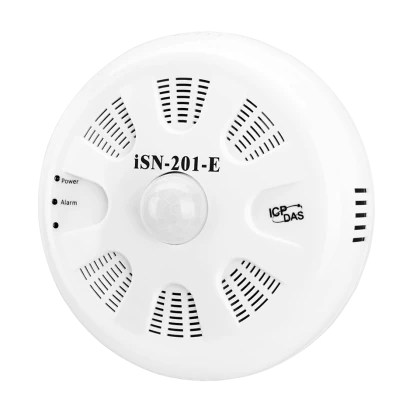

Illuminance, Temperature and Humidity Sensor Module (Ethernet) (RoHS), 0C to +75C operating temperature
iSN-201-E
ICP DAS
SKU: 08775900
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Ceiling mounting
Protection Level of Chassis
IP20
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client, DCON slave
Ethernet
Total Ethernet
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
10..48 V
Interfaces
COM Total
1
RS-485
1
Sensors
Measuring Range
-40...+120 °C
Resolution
0.1 °C
Accuracy (+/-)
0.5 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Light Measurement Range
0...20,000 Lux
Digital Output
Total channels of digital output
1
Operating Conditions
Operating Temperature
0..75 °C
Dimensions and weight
Width
150 mm
Height
53 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.17 kg
