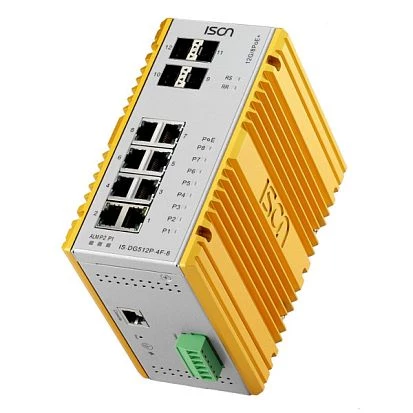

IS-DG512P-4F-8

ISON
SKU: 56337400
Industrial 12-port Managed DIN-Rail Power-over-Ethernet Switch with 8x 1000 Base-TX and 4x 1000 Base-FX SFP Slot, w/ 8x PoE IEEE 802.3af/at, Max. 2 Ultra PoE, 60 Watt, -40...+75C operating temperature, Dual DC
Price on request
Available
Available
IS-DG512P-4F-8
ISON IS-DG512P-4F-8 Ethernet Switch for industrial applications The ISON IS-DG512P-4F-8 is a very robust, fast switch for use in the Industrial area. It provides 12 fast ports: Eight Gigabit RJ45 Copper Ports, which meet the IEEE 802.3af/at specification and four 100/1000 based SFP (SX/LX/LHX) fibers ports. The switch is easy to use thanks to plug-n-play and web-based management, but also has a command line interface and a variety of other control options, which make integration and control possible in a wide range of systems. The full Gigabit network provides a higher data throughput than conventional Fast Ethernet Networks. This fast network connection allows the easy transfer of video and other very complex data. The switch ISON IS-DG512P-4F-8 not only takes over the data transport, but can also be used with its PoE function (Power over Ethernet) also the power supply by one and the same Ethernet cable provide. It supports up to 8 PoE ports with 15.4/30 watts, or can be used with up to 2 Ultra High Power PoE ports with 60 watts output power. The intelligent PoE management function allows switching on and off and time control of the power supply via the Ethernet cable. A separate power supply for the terminals is thus often made superfluous, which reduces the complexity of the cabling The very wide temperature range in which the ISON IS-DG512P-4F-8 can be using between -40 and 75 degrees Celsius. The redundant power supply and reverse power protection, as well as the protection against voltage spikes of up to 2KV on the RJ45 Copper Ports make the switch to one reliable but cost-effective choice. Important for industrial use are also the various mounting options: The switch can be integrated into DIN rail setups, but also has wall-mounting devices. The switch is housed in a sturdy housing with dimensions of 154 mm x 105 mm x 108 mm, and weighs 1.5 kg. The case comes without fan, and is therefore very flexible, which is the case integration into different constructions. With these characteristics, the switch ISON IS-DG512P-4F-8 is particularly suitable for industrial applications such as production lines in factories or the embedding in larger machines. It is also a reliable device for use in the market building automation, CCTV, and security applications
IS-DG512P-4F-8
ISON IS-DG512P-4F-8 Ethernet Switch for industrial applications The ISON IS-DG512P-4F-8 is a very robust, fast switch for use in the Industrial area. It provides 12 fast ports: Eight Gigabit RJ45 Copper Ports, which meet the IEEE 802.3af/at specification and four 100/1000 based SFP (SX/LX/LHX) fibers ports. The switch is easy to use thanks to plug-n-play and web-based management, but also has a command line interface and a variety of other control options, which make integration and control possible in a wide range of systems. The full Gigabit network provides a higher data throughput than conventional Fast Ethernet Networks. This fast network connection allows the easy transfer of video and other very complex data. The switch ISON IS-DG512P-4F-8 not only takes over the data transport, but can also be used with its PoE function (Power over Ethernet) also the power supply by one and the same Ethernet cable provide. It supports up to 8 PoE ports with 15.4/30 watts, or can be used with up to 2 Ultra High Power PoE ports with 60 watts output power. The intelligent PoE management function allows switching on and off and time control of the power supply via the Ethernet cable. A separate power supply for the terminals is thus often made superfluous, which reduces the complexity of the cabling The very wide temperature range in which the ISON IS-DG512P-4F-8 can be using between -40 and 75 degrees Celsius. The redundant power supply and reverse power protection, as well as the protection against voltage spikes of up to 2KV on the RJ45 Copper Ports make the switch to one reliable but cost-effective choice. Important for industrial use are also the various mounting options: The switch can be integrated into DIN rail setups, but also has wall-mounting devices. The switch is housed in a sturdy housing with dimensions of 154 mm x 105 mm x 108 mm, and weighs 1.5 kg. The case comes without fan, and is therefore very flexible, which is the case integration into different constructions. With these characteristics, the switch ISON IS-DG512P-4F-8 is particularly suitable for industrial applications such as production lines in factories or the embedding in larger machines. It is also a reliable device for use in the market building automation, CCTV, and security applications
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit Ports
4
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
Syslog, Telnet, UDP, ARP, TCP, RARP, ICMP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
105 mm
Depth
108 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
