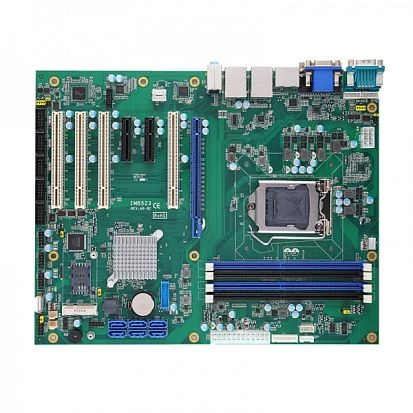

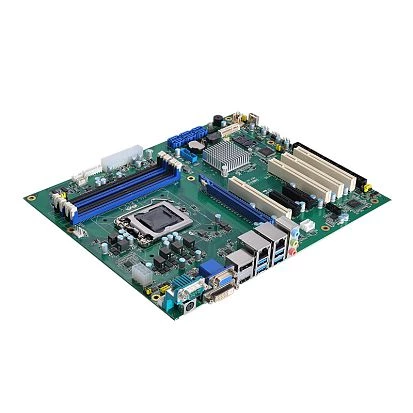

LGA1151 Socket 8th Gen. Intel Core i7/i5/i3/Celeron ATX industrial motherboard with Q370, 4x288-pin DIMM DDR4, 6xCOM, 6xUSB 3.0, 7xUSB 2.0, 2xGbE LAN, DVI-D, HDMI, VGA, DP, 6xSATA-600 (RAID 0/1/5/10), 1xPCIe x16, 2xPCIE x4, 4xPCI
IMB523VDHGGA-Q370
AXIOMTEK
SKU: 56719900
End-of-life product
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
13
USB 2.0
7
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
RAID Levels
1, 5, 10
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
2
PCI
4
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors

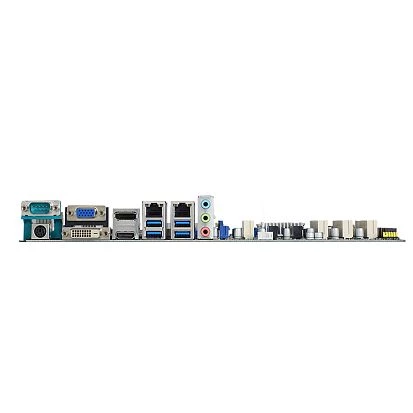

DB9, DVI-D, DB15 VGA, HDMI, 1xPS/2, 2xRJ45, Mic In, Line In, Line Out, Display Port, 4xUSB (4-pin)
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.96 kg
