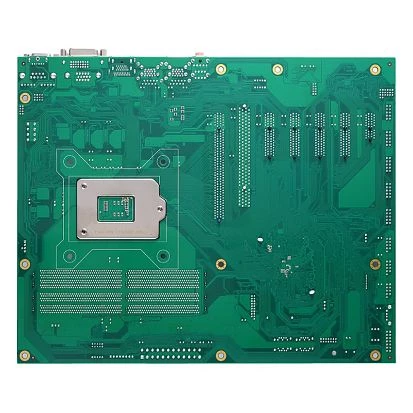

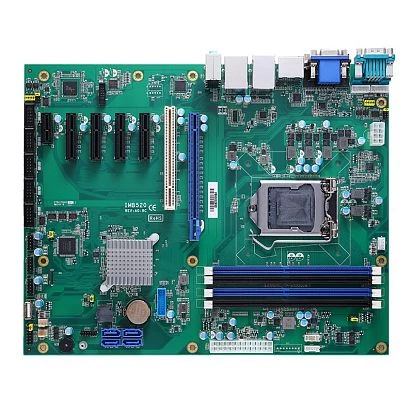

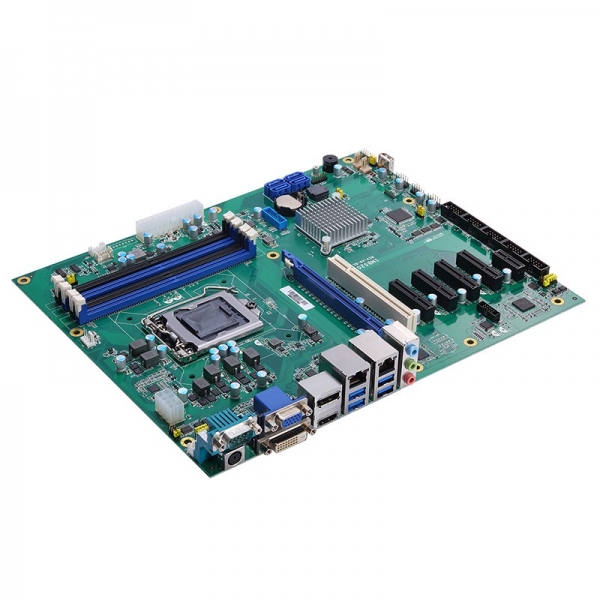

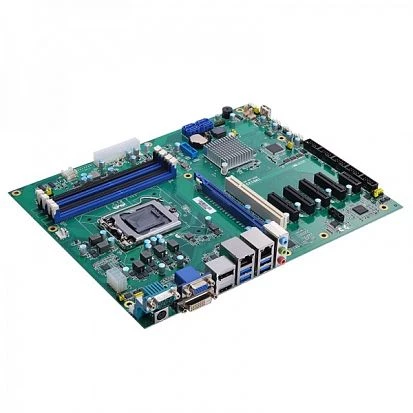

LGA1151 Socket 9th/8th Gen. Intel Core i7/i5/i3/Celeron ATX industrial motherboard with Q370, DDR4, DVI-D, HDMI, VGA, DP, 2xGbE LAN, 6xCOM, 6xUSB 3.0, 7xUSB 2.0, 4xSATA-600 (RAID 0/1/5/10), 1xPCIe x16, 4xPCIe x4, 1xPCIe x1, 1xPCI
IMB520R
AXIOMTEK
SKU: 08789100
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
6
RS-232/422/485
2
USB Total
13
USB 2.0
7
USB v3.x
6
Audio
Audio Controller
Realtek ALC662
Drive interfaces
RAID Levels
1, 5, 10
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
4
PCI Express x1
1
PCI
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

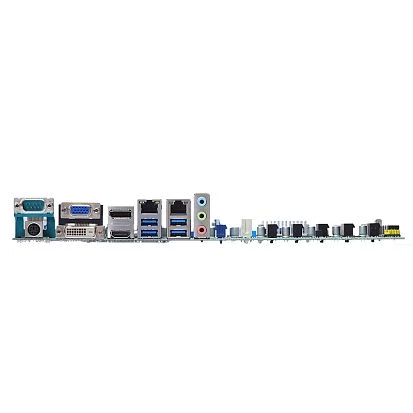

20-pin + 4-pin ATX, DB9, DB25, DVI-D, HDMI, PS/2 Keyboard/Mouse, 2xRJ45, 4xUSB, Audio (in/out/Mic), Display Port, 8-pin ATX
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.96 kg
Documentation
