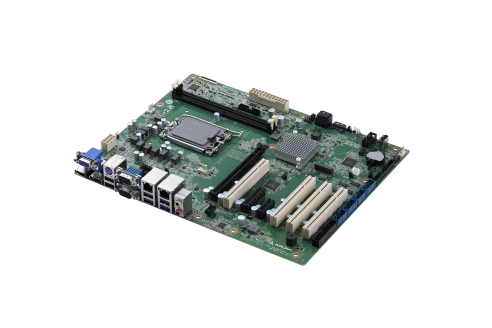

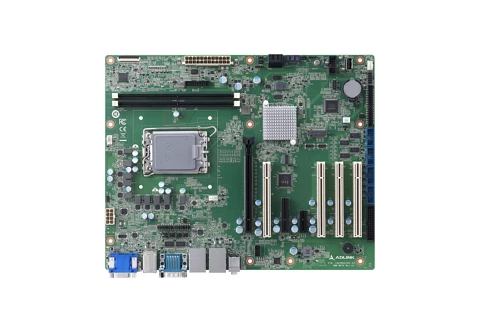

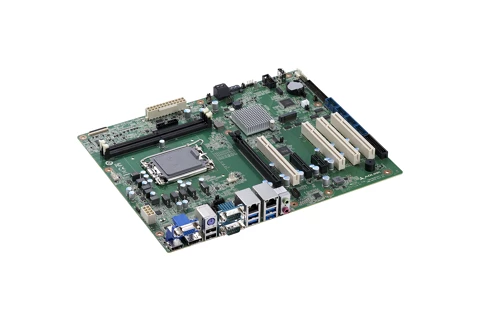

ATX Mainboard, support Intel 13th/12th Gen CPU, H610E, DDR5, 2xLAN, 6xCOM, 4xUSB 3.2, 5xUSB 2.0, Key M, 3xSATA 3, 12VDC-in
IMB-M47H
ADLink
SKU: 10914700
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR5
Socket Type
2xDIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps, Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
9
USB 2.0
5
USB v3.x
4
LPT
LPT
Drive interfaces
SATA 3
3
M.2
1
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
1
PCI Express x1
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
LPT, 3xSATA 3, USB 2.0, TPM, 24-pin ATX, 4x10-pin RS-232, 2x4-pin USB 2.0, GPIO, 8-pin ATX
Connectors

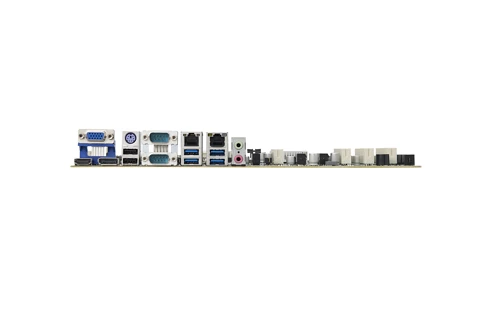

DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 6xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Gross Weight
1.2 kg
