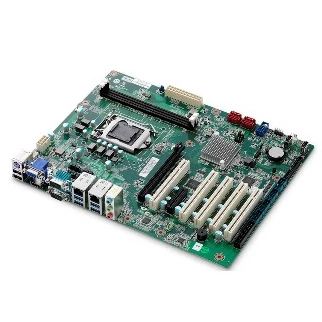

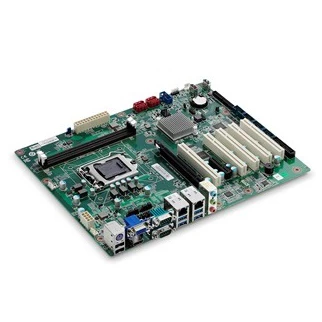

ATX Mainboard 6th/7th Gen. LGA1151 Intel Core i3/i5/i7/Pentium/Celeron, H110 Chipset, up to 32GB DDR4 2133/2400 RAM, VGA/HDMI, 2xGbE, 6xCOM, 4xUSB 3.0, 6xUSB 2.0, 1xPCIe x16, 1xPCIe x4, 5xPCI 2.2, Audio, 12VDC-in
IMB-M43H
ADLink
SKU: 57221000
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
10
USB 2.0
6
USB v3.x
4
LPT
LPT
Audio
Audio Controller
Realtek ALC892
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
1
PCI
5
Connectors
Internal Ports
LPT, 4xSATA 3, 24-pin ATX, 4x10-pin RS-232, 2x4-pin USB 2.0, GPIO, 8-pin ATX
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out
Software
Operating System Compatibility
Windows 7, Windows 8.1, Ubuntu, Fedora, Windows 10
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Gross Weight
1.2 kg
