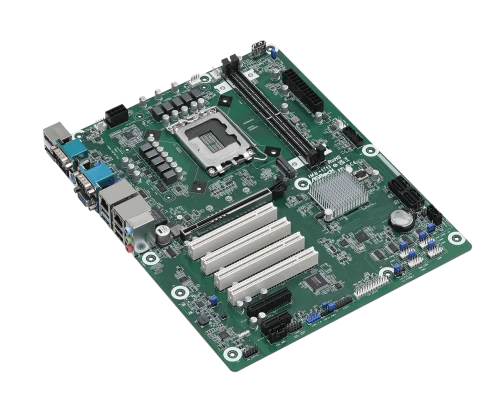

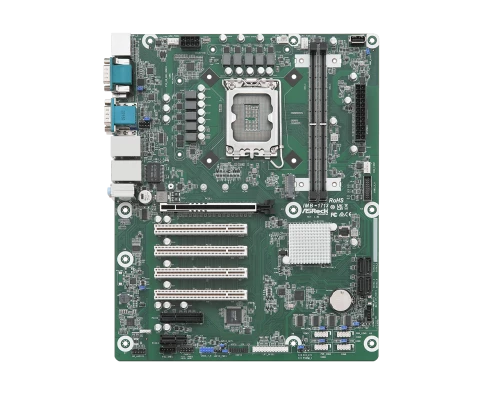

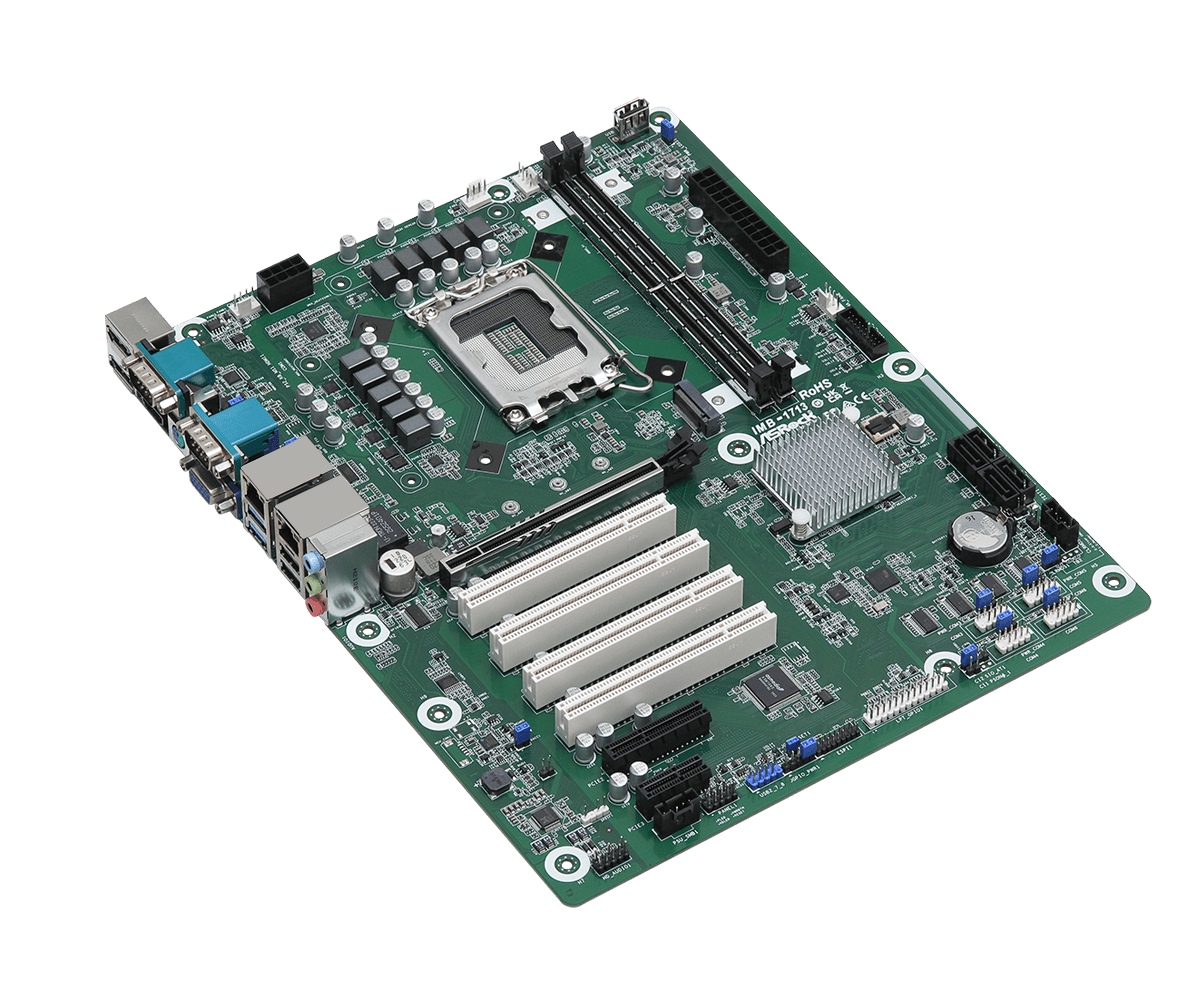

IMB-1713
SKU: 10083400
ATX, Socket LGA1700 for Intel Core i7/i5/i3/Celeron (Raptor Lake-S/Alder Lake-S), Intel H610, DDR5, HDMI/DP/VGA, 2x2.5GbE LAN, 6xCOM, 4xUSB 3.2, 5xUSB 2.0, 4xSATA3, PCIe x16, PCIe x4, PCIe x1, 4xPCI, M.2 Key-M, M.2 Key-E, M.2 Key-B
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR5
Socket Type
2xDIMM
ECC
No
Maximum Memory
96 GB
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI, VGA, 2xDisplayPort
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps, Realtek RTL8125BG
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
9
USB 2.0
5
USB v3.x
4
LPT
LPT
Digital Input-Output
Channels of DIO
16
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
4
M.2
1
Extension Slots
Total
7
PCI Express x16
1
PCI Express x4
1
PCI Express x1
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xSATA 3, USB 2.0, 24-pin ATX, 26-pin LPT, 4x10-pin RS-232, 8-pin USB 2.0, 10-pin Audio, 19-pin USB 3.0, 2xGPIO, 8-pin ATX
Connectors

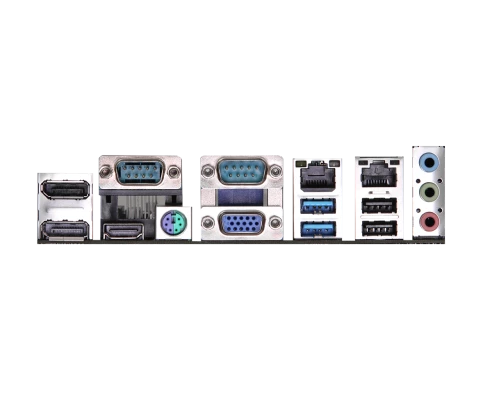

2xDB9, DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), 2xDisplayPort
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.27 kg
