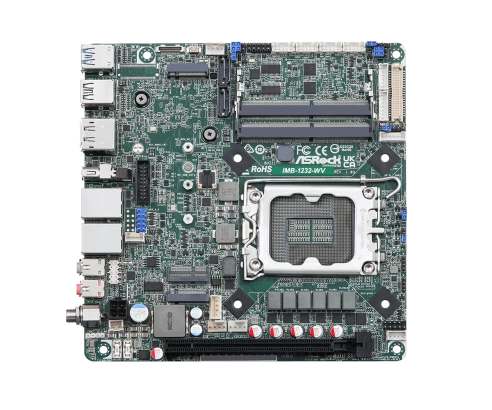

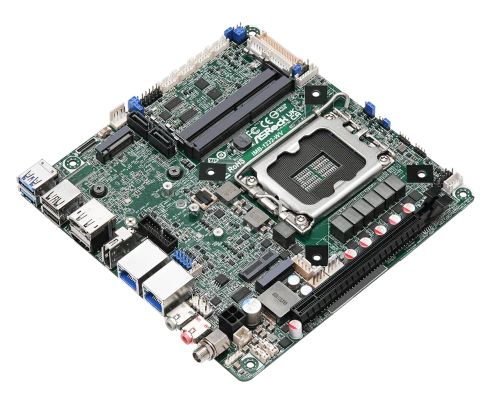

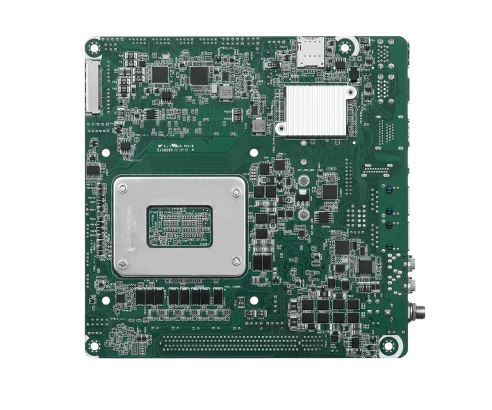

IMB-1232-WV
SKU: 09700300
Mini-ITX, support Intel Core i7/i5/i3/Celeron (Raptor Lake-S/Alder Lake-S), Intel H610, DDR4, DP/DP++/eDP/LVDS/HDMI, 2x2.5GbE LAN, 4xCOM, 3xUSB 3.2, 5xUSB 2.0, 2xSATA3, PCIe x16, M.2 Key-E, M.2 Key-M, M.2 Key-B, 12-48VDC
Price on request
Available on order
Available on order
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Apollo Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, eDP
Ethernet
Controller Type
Intel i225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
5
USB v3.x
3
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
SIM Card slots
Yes
PCI Express x16
1
M.2
3
Connectors
Internal Ports
4xCOM, 2xSATA 3, 4-pin (12V DC CPU), USB 3.0, 3xUSB 2.0
Connectors

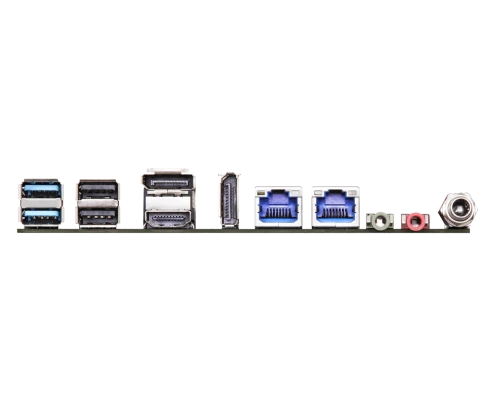

HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..70 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Apollo Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, eDP
Ethernet
Controller Type
Intel i225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
5
USB v3.x
3
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
SIM Card slots
Yes
PCI Express x16
1
M.2
3
Connectors
Internal Ports
4xCOM, 2xSATA 3, 4-pin (12V DC CPU), USB 3.0, 3xUSB 2.0
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..70 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Apollo Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, eDP
Ethernet
Controller Type
Intel i225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
5
USB v3.x
3
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
SIM Card slots
Yes
PCI Express x16
1
M.2
3
Connectors
Internal Ports
4xCOM, 2xSATA 3, 4-pin (12V DC CPU), USB 3.0, 3xUSB 2.0
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..70 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Apollo Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, eDP
Ethernet
Controller Type
Intel i225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
5
USB v3.x
3
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
SIM Card slots
Yes
PCI Express x16
1
M.2
3
Connectors
Internal Ports
4xCOM, 2xSATA 3, 4-pin (12V DC CPU), USB 3.0, 3xUSB 2.0
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..70 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
Documentation
Documentation
Documentation
Documentation
