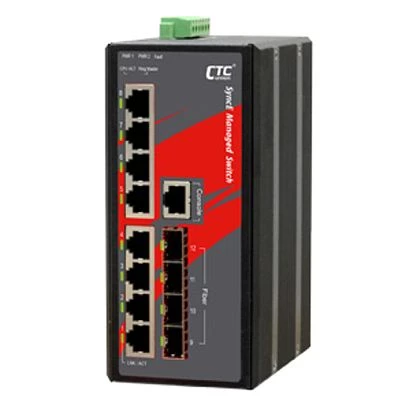

Industrial Managed Gigabit Ethernet Switch with 8x 10/100/1000 Base-T Ports, 4x SFP Ports, 18..60V DC Input Power, Alarm Relay Contact, -40..+75C Operating Temperature, SyncE, IEEE 1588 PTPv2, EN50121-4, EN61000-6-2, EN61000-6-4
IGS-804SM-SE-E
CTC Union
SKU: 56238000
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit Ports
4
Switch Properties
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, DNS, NTP, SNTP, RMON, TFTP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3
Security Protocols
HTTPS, RADIUS, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet
LED / Controls
Setup of Operation Mode
Console Port
System Power Input
Redundant power input
Yes
Input Voltage DC
18..60 V
Power Supply Reserve input Voltage DC
18..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.82 kg
Gross Weight
1.76 kg
