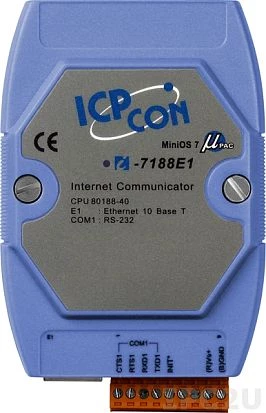

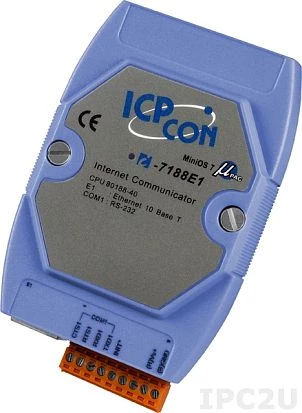

I-7188E1

PC-compatible AMD188ES 40MHz Industrial Controller, 256kb Flash, 256kb SRAM, Ethernet, 1xRS232, cable CA-0910x1

Price on request * - With the selected configuration ()
pcs.
To order
Vendor:
ICP DAS
COM Total:
1
RS-232:
1
Temperature:
-25 ... 75 °C
Specification
Vendor
Name:
ICP DAS
Construction
Construction Chassis:
Plastic Chassis
Mounting Configuration:
Wall, DIN-Rail mount
CPU
Processor Installed:
80188
Frequency:
40 MHz
Memory
Memory Type:
SRAM
Default on Board Memory:
384 kB
Interfaces
COM Total:
1
RS-232:
1
Maximum Transfer Rate RS-232:
115200 Bit/s
Network Adapter
10 Mbit/s:
1
Connectors / Cables
Connectors:
Screw Terminal
System Power Input
Input Voltage DC:
10 ... 30 V
Power Consumption:
2 W
Software
Operating System Installed:
Mini OS7
Development Software:
MiniOS7 Studio (TC++1.01, TC 2.01, BC++ 3.1 ~ 5.2x, MSC 6.0, MSVC++ before version 1.5.2)
Programming Method:
C/C++
Operating Conditions
Temperature:
-25 ... 75 °C
Humidity:
5 ... 90 % (Non-Condensing)
Storage Conditions
Temperature Range:
-40 ... 80 °C
Humidity:
5 ... 90 % (Non-Condensing)
Dimensions and weight
Width:
72 mm
Height:
123 mm
Depth:
33 mm
Options

Configuration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Price on request ()
Power Supply Price costs
not installed
Power Adapter 230V DC/24V 100mA DC

Dimensions

Weight

weight brutto: 0.35 kg
weight netto: 0.2 kg
