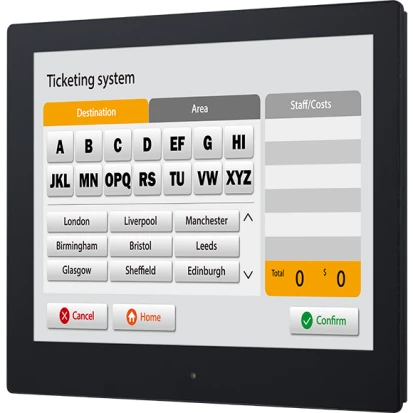

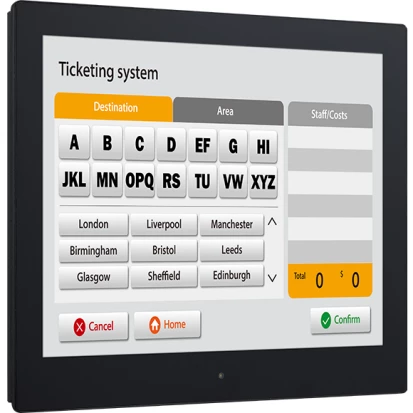

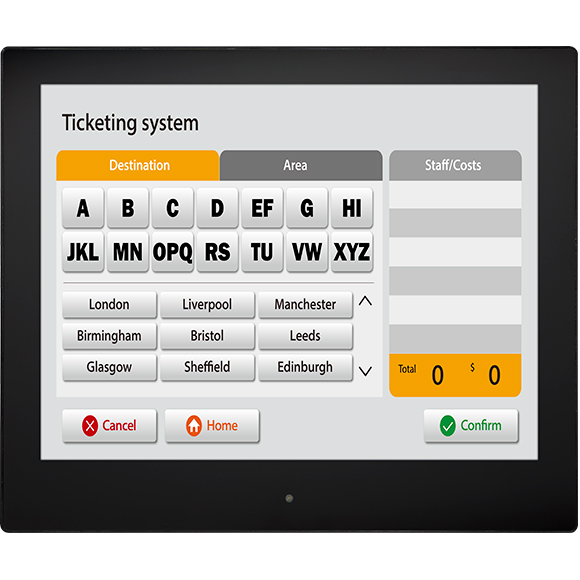

15" High Brightness Panel PC, 1024x768, 1800cd/m2, PCAP Touch, Optical Bonding, Intel Atom X7211RE 3.2GHz CPU, Up to 32GB DDR4 RAM, HDMI, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xCOM, Audio, 1xMiniPCIe, 12-24VDC-in
HPPC-15-10X7211
NEXCOM
SKU: 80065100
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Type
Fan
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
1800 Cd/m2
Contrast Ratio
2500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7211RE
Socket
FCBGA1264
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

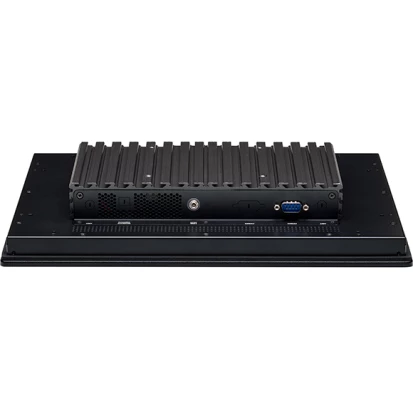

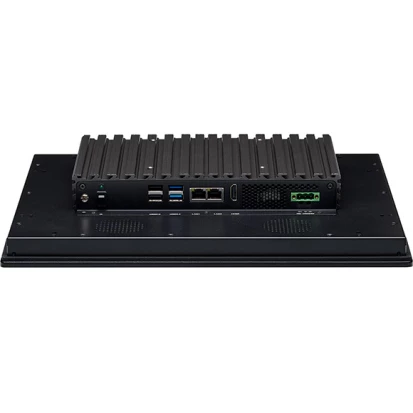

DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
351.9 mm
Height
295.75 mm
Depth
58.15 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Dimensions
Net Weight
4.2 kg
Gross Weight
5.8 kg
