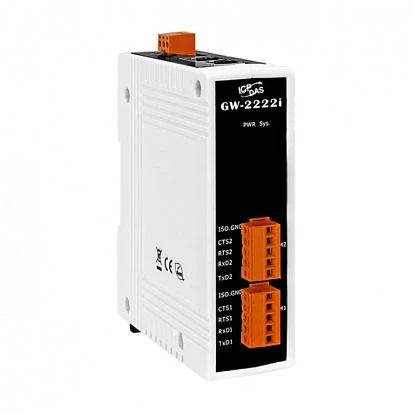

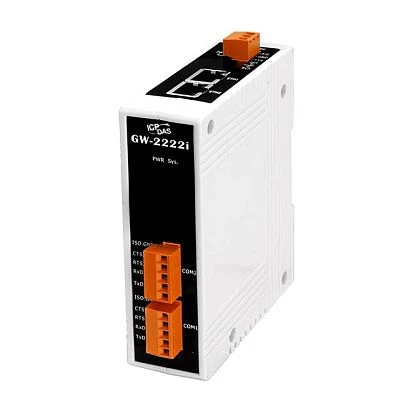

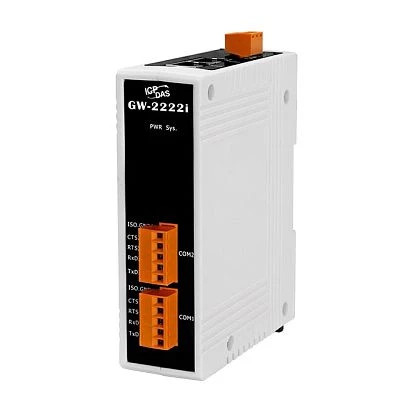

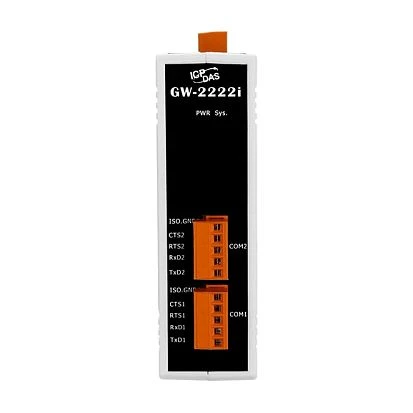

Modbus/TCP to RTU/ASCII Gateway with 2-port Ethernet Switch and 2 Isolated RS-232 Ports
GW-2222i
ICP DAS
SKU: 09119800
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232
2
Isolation of COM Ports
3 kV (RS-232)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
33 mm
Depth
97 mm
Height
126 mm
Dimensions
Gross Weight
0.3 kg
