GOT710S-837-R-E3845-24-110V/kp

AXIOMTEK
SKU: 09288100

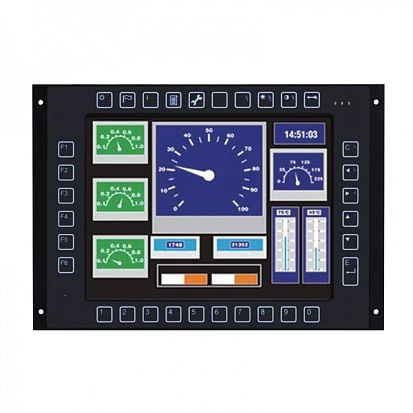

10.4" SGVA Railway Fanless Touch PC, Intel Atom E3845 1.91GHz, resistive touch, 4GB DDR3, 16GB flash, 2xM12 GbE LAN, 1xM12 COM, 2xM12 USB 2.0, CAN, DIO, mSATA, 2xPCIe Mini, 24-110VDC-in, with keypad
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Built-in, Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Socket
CPU onboard
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xUSB, 2x8-pin M12 COM, 8-pin M12 Ethernet
System Power Input
Input Voltage DC
24..110 V
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE
Rolling Stock
EN 50155, IEC 61373, EN 50121-3-2, EN 45545-2
Dimensions
Net Weight
2.6 kg
Gross Weight
4.4 kg
