G1058

Arbor
SKU: 80058900

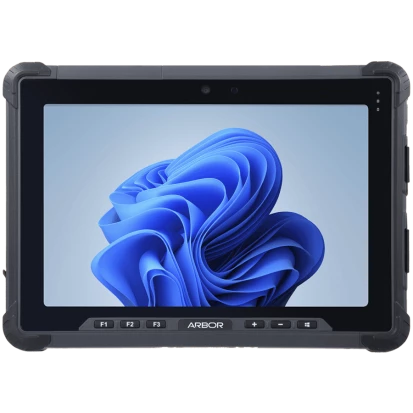

10.1" Rugged Tablet PC, IP66, 1920x1200, 800cd/m2, PCAP Touch, Intel Core i5-1235U 4.4GHz CPU, 16GB LPDDR5 RAM, 256GB NVME SSD, HDMI, 2xUSB 3.2, 1xUSB Type-C PD/DP Alt., MicroSD, 1xNanoSIM Slot, 8/2MP R/F Cam., WiFi/BT/GPS, Audio/Mic, 6000mAh Bat.
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
3
USB v3.x
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS, GLONASS
Sensors
Light Sensor, G-sensor
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.2
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
HDMI, 2xUSB, MicroSD card slot, USB type C
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
6000 mA*h
RunTime Battery 1
10 h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows IoT Enterprise 11
Dimensions and weight
Width
268.5 mm
Height
191 mm
Depth
22.35 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
0-95%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.9 kg
Gross Weight
1.2 kg
