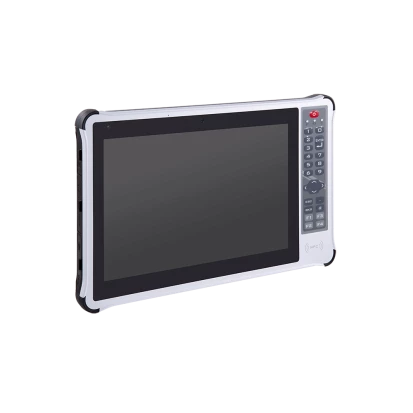

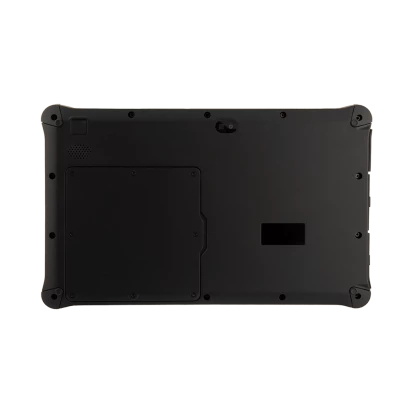

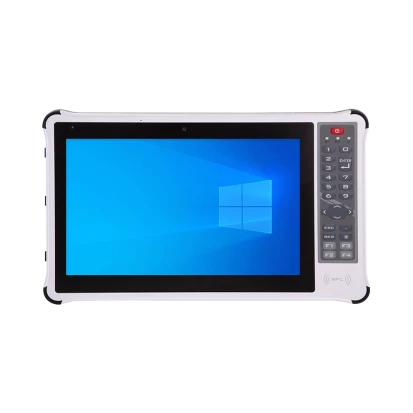

10.1" Rugged Tablet PC, 1280x800, 350cd/m2, PCAP Touch, IP54, Intel Pentium N6415 1.2GHz CPU, 4GB DDR4 RAM, 64GB eMMC, Mini-HDMI, 1xGbE LAN Opt., 1xUSB 3.0, 1xUSB Type-C, MicroSD, 5MP R/F Cam., WiFi/BT, NFC/RFID, Audio/Mic, 4000mAh Bat., 19VDC-in
G1017M
Arbor
SKU: 57921700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Chassis
IP54
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Pentium N6415
Socket
CPU onboard
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
MicroSDHC
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Additional Functions
Camera Frontside
5 MP
Rear Camera
5 MP
RFID Reader
Yes
NFC
Yes
Antenna characteristics
Bluetooth
v5.2
LED / Controls
LED
Battеry Status, Power LED, WLAN LED, Bluetooth LED
Controls
On/Off, Control Buttons, Function Keys
Connectors
Connectors
1xUSB, MicroSD card slot, Mini HDMI, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4000 mA*h
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
301 mm
Height
187 mm
Depth
18 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Vibration
Operation: 20 to 1000 Hz @ 1 grms Transportation: 20 to 1000 Hz @ 3 grms
Shock
Operation: 11 ms @ 20G, Transportation: 11 ms @ 40G
Temperature (Storage)
-20~+60
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.06 kg
Gross Weight
1.25 kg
