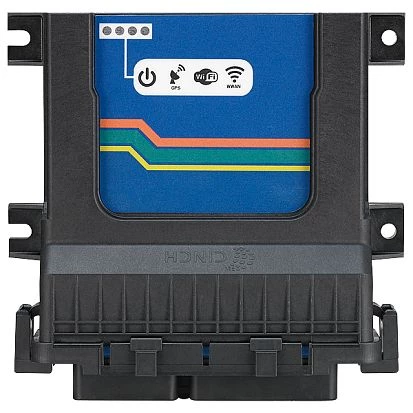

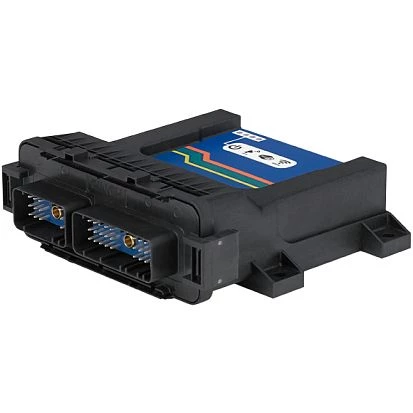

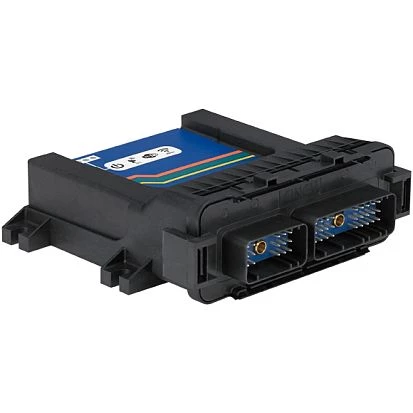

FMS-1000
NEXCOM
SKU: 56252400
Telematics IoT gateway, 1x10/100 Mbps Ethernet, 1xG-sensor, 1xRS232 for optional RFID reader (w/12VDC output), u-blox, NEO-M8N GPS, Triggered by events, 2xCAN Bus 2.0B, -20C~60C
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
Industrial Interfaces
CAN Port
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Antenna characteristics
Cellular interfaces
3G
LED / Controls
LED
1xOn/Off LED, WLAN LED, WWAN LED, GPS LED
System Power Input
Input Voltage DC
9..36 V
Operating Conditions
Operating Temperature
-20..60 °C
Construction
Protection Level of Chassis
IP67
Dimensions and weight
Width
153 mm
Depth
146 mm
Height
56 mm
Connectors
Connectors
RJ45 Ethernet, Mic In, Line Out, 12V DC Output
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
