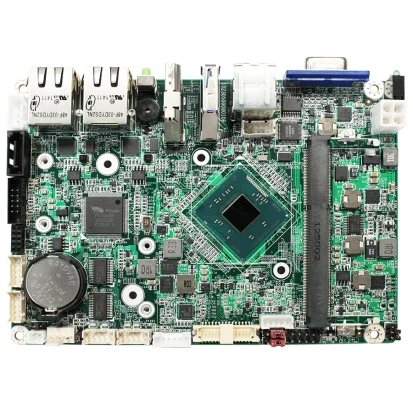

3.5" Embedded Mainboard, Intel N50 3.4GHz CPU, Up to 16GB DDR5 RAM, LVDS/DP/HDMI/VGA, 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 4xUSB 2.0, 8-bit DIO, 1xSATA 3, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 12VDC-in, -20..50C
EmCORE-i93N3-N50
Arbor
SKU: 80058700
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N50
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i226
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Display Port
Software
Operating System Compatibility
Ubuntu, Windows IoT Enterprise 10, Windows IoT Enterprise 11
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Dimensions
Net Weight
0.36 kg
Gross Weight
0.55 kg
