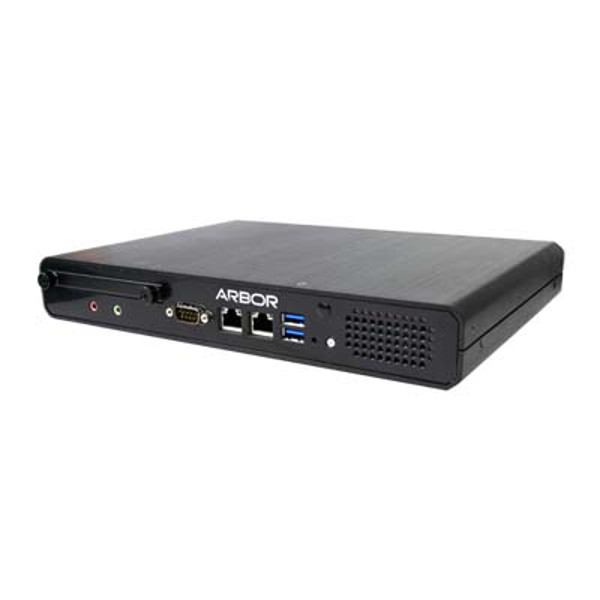

ELIT-1900
Arbor
SKU: 56445300
Digital Signage Player with 6th Gen. Intel Core i-series, Up to 16GB DDR4, AMD E8860 GPU with 2GB DDR5, 6xHDMI, 1x2.5" HDD, 2xIntel I211AT,1xRS232/485, 4xUSB3.0, Audio, 2xAntenna, 1xFull-Size mini-PCIe w/ SIM socket, 19V input, -10 to 45C Op. Temp.
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall, Wall VESA 100
CPU
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel QM170 PCH
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/485
1
USB v3.x
4
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, Mic In, Line Out, 2xSMA
System Power Input
Input Voltage DC
19..19 V
Software
Operating System Compatibility
Windows 7, Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
280 mm
Height
47 mm
Depth
200 mm
Operating Conditions
Operating Temperature
-10..45 °C
Vibration
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation
Shock
Operating 10G (11ms), non-operating 20G
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
4.2 kg
Gross Weight
5 kg
