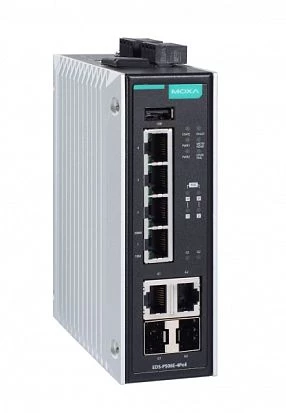

6-port Gigabit managed Ethernet switch, 4 10/100BaseT(X) PoE/PoE+ ports, 2 Combo Port (10/100/1000BaseT(X) or 100/1000BaseSFP), -40 to 75C operating temperature
EDS-P506E-4PoE-2GTXSFP-T
MOXA
SKU: 07887100
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
6
10/100 Mbit/s
4
Type 10/100 Mbit/s
4xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
PoE/PoE+ 10/100 Mbit/s
4
Power Budget
180 W
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Video Always-On (V-ON), Smart PoE
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, MAC ACL, MAB Authentication, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
0.5A@48V DC
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB
System Power Input
Redundant power input
Yes
Input Voltage DC
12..57 V
Power Supply Reserve input Voltage DC
12..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
49.1 mm
Depth
116 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Automotive
NEMA TS2
Safety
UL 61010-2-201, EN 61010
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.2 kg
Gross Weight
1.2 kg
