EDS-P206A-4PoE-T

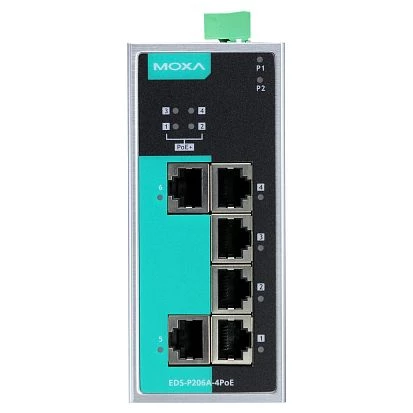

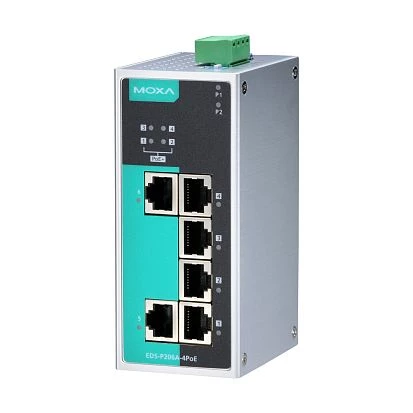

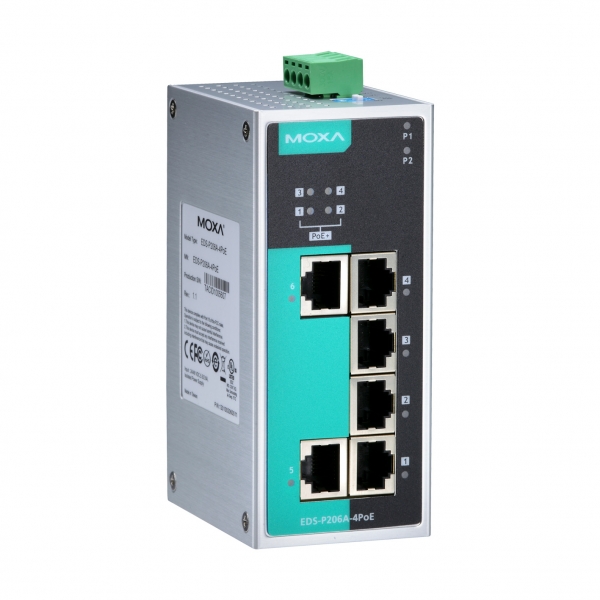

6-port switch EDS-P206A-4PoE-T is designed for operation in extremely harsh weather and industrial conditions. The device is provided in a fanless metal chassis. The letter ‘T’ in the product name stands for the device ability to operate in critical temperature conditions. The dual power supply circuit secures uninterruptible operation. 4 out of 6 ports of the unmanaged switch support Power-Over-Ethernet technology and can supply power to the connected devices over a network cable. PoE switch EDS-P206A-4PoE-T: description and features: Amount of LAN ports: 6. Slots: RJ-45. IEEE 802.3/802.3u standards support 10/100 Base TX. IEEE 802.3af/at standards provide PoE/PoE+ technologies. The switch supplies up to 30 W per each of 4 PoE ports in the increased power mode. There are functions of speed auto negotiation and interface type auto-sensing (Auto MDI/MDI-X). There is a built-in broadcast storm protection, as well as tools for data flow management. 802.3x Flow Control, Back Pressure. Input voltage range has been expanded: 20…60 V DC. There is a built-in redundant power supply circuit and reverse polarity protection. Power consumption: 180 W (7.5 A at load of 30 W on all PoE ports). Thanks to innovative technology solutions, the device is capable of stable work at temperature spanned from -40 to +75 °С and 95% humidity, which allows you to deploy the switch both in hot shops, and outdoors during a winter season. Mean time between failures (according to MTBF standard) is 74 years. Thanks to its simplicity and reliability, the MOXA’s Ethernet switch EDS-P206A-4PoE-T is a compelling solution for building Fast Ethernet industrial networks in the low-budget price segment. PoE+ ports will provide with power even the most power-hungry devices, such as outdoor IP cameras with cleaning and heating. The unexpensive price of the switch shall not affect your investment budget dramatically.
