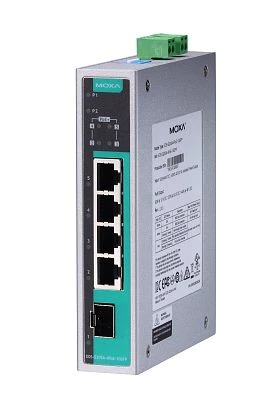

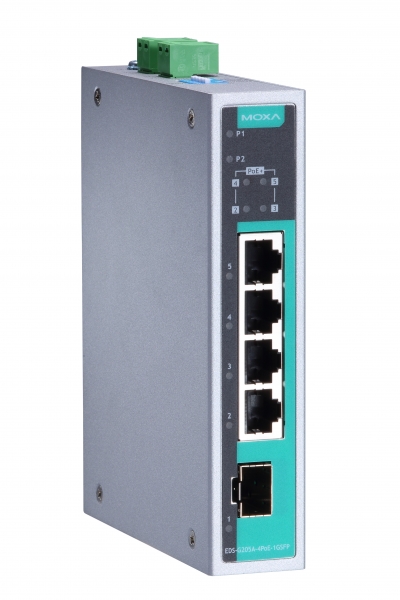

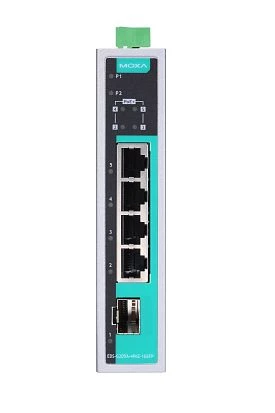

EDS-G205A-4PoE-1GSFP

EDS-G205A-4PoE-1GSFP is an economically efficient solution for construction of highway power independent segments of an industrial network. The switch refers to the Power Source Equipment class. Four Full Gigabit Ethernet ports support maximum throughput and PoE+ technology for supplying energy-demanding industrial devices. The fifths port for a 1000 Base SFP optical module provides access to the remote highway communication channels. Ethernet switch EDS-G205A-4PoE-1GSFP by MOXA: description and features: Standards of Gigabit communication: IEEE 802.3ab/z. Network protocols: 1000 Base TX/SX/LX/LHX/ZX. There is support of half-duplex and full-duplex communication modes, and various SFP modules. PoE standards: IEEE 802.3af/at. Each of 4 ports provides power of 30 W in the increased power mode. There is intelligent detection of PoE devices and automatic power control applied. There is a reliable built-in switching method with intermediate storage (Store and Forward), a large MAC address table (8 K), packet buffer (136 KB) and Jumbo Frame (9.6 KB). There are built-in functions of speed auto negotiation, interface type auto-sensing (Auto MDI/MDI-X), and data flow management (IEEE 802.3x Flow Control). Dual power supply circuit activates a backup power source, if necessary. Input voltage: 24…48 V DC. Power consumption: 180 W (7.5 A at 24 V and at load of 30 W per each PoE port). The ultra-slim fanless metal chassis (29х135х105) protects electronic components from solid particles ingress, shocks and vibrations (IEC 60068-2-6/27/32). Mounting option: wall, DIN-rail. The attractive price of the industrial switch EDS-G205A-4PoE-1GSFP is justified by its powerful communication parameters. The Gigabit PoE ports integrate the devices into highway networks that provide the highest requirements to speed and bandwidth. Moreover, they ensure independent functioning of energy-demanding devices, such as ourdoor IP cameras, highly-effecient wireless access points and IP telephony.
