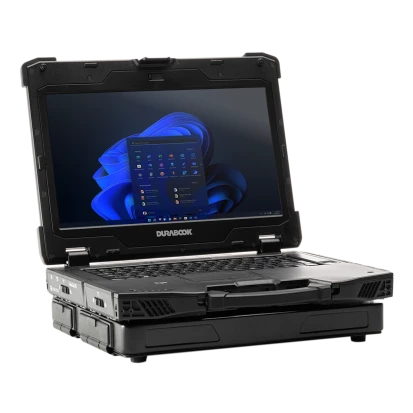

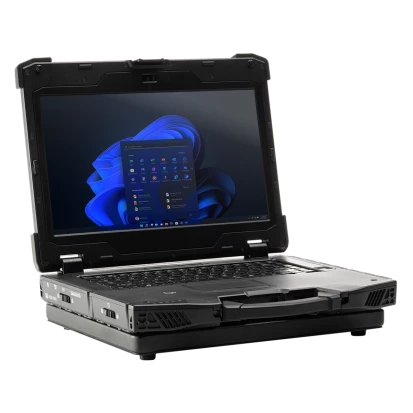

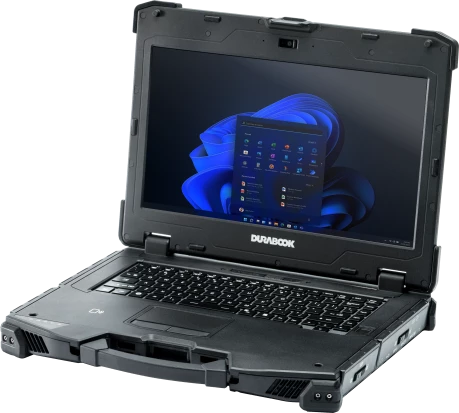

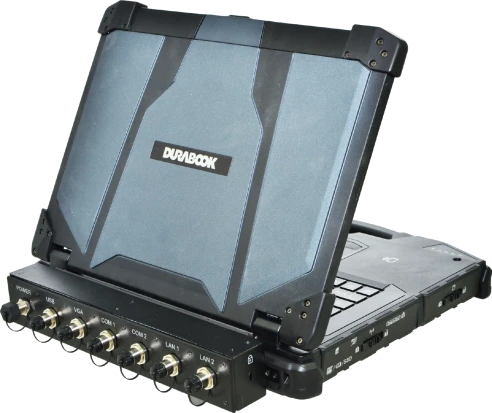

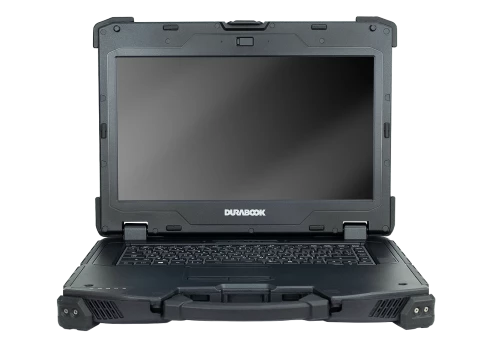

Rugged Notebook 14" FHD (1920x1080), Intel Core i5-1135G7 2.4GHz, 8GB RAM, 256GB SSD, VGA, 802.11a/b/g/n/ac WiFi 6, BT 5.1, Express Card 54, Smart Card Reader, 2M camera, 2xRJ45, 2xRS232, Backlit K/B, IP65, Without OS
Durabook Z14I-G2
Durabook
SKU: 09415200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TN
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI, VGA
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB 2.0
1
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
2
MicroSD
1
RAID Levels
0, 1, 5, 10
Storage Cage
Number Of Cage External
2
Slim Optical Disk Drive bays
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
M.2
1
M.2 Form Factor
2242 M, 3042 M
SIM Card slots
1
Additional Functions
Camera Frontside
2 MP
GPS
Optional
RFID Reader
Optional
Smart Card Reader
Yes
Trusted boot hardware/software module support
Sobol
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.2
Keyboard / Pointing Devices
Type Keyboard
Membrane with backlight
Number of Keys
87
Layout
English, Russian
Type Mouse
TouchPad
LED / Controls
LED
LED Bar
Controls
On/Off, Control Buttons
Connectors
Connectors

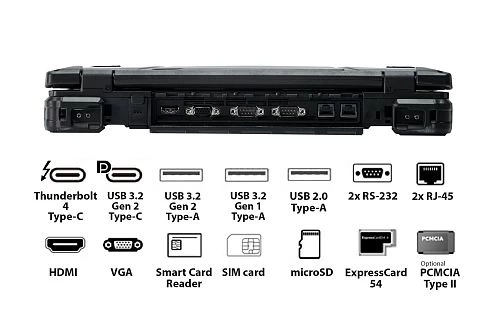

2xDB9, DB15 VGA, HDMI, 2xRJ45, 5xUSB, SIM Card Slot, Smart card slot, MicroSD card slot, USB type C
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
95 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
6900 mA*h
RunTime Battery 1
12.5 h
Battery 1 Hotswap
Optional
Additional Battery Type
Li‑ion
Additional Battery Capacity
4700 mA*h
RunTime Battery 2
9 h
Additional Battery Hotswap
No
Software
Operating System Compatibility
Windows 10, Astra Linux, ALT 8 SP Workstation, Windows 11, RED OS
Dimensions and weight
Width
356 mm
Height
50 mm
Depth
280 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Explosion safety
ANSI C1D2 12.12.01
MIL-STD-810
MIL-STD-810G Test Method 500.5 Low Pressure (Altitude), MIL-STD-810G Test Method 501.5 High Temperature, MIL-STD-810G Test Method 502.5 Low Temperature, MIL-STD-810G Test Method 503.5 Temperature Shock, MIL-STD-810G Test Method 505.5 Solar Radiation (Sunshine), MIL-STD-810G Test Method 506.5 Rain, MIL-STD-810G Test Method 509.5 Salt Fog, MIL-STD-810G Test Method 521.3 Icing/Freezing Rain
Dimensions
Net Weight
3.49 kg
Gross Weight
4.8 kg
