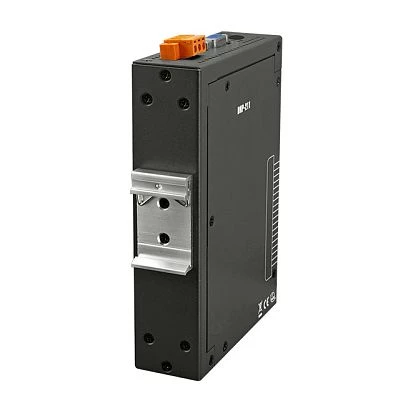

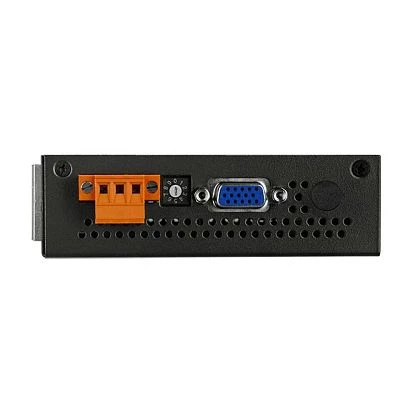

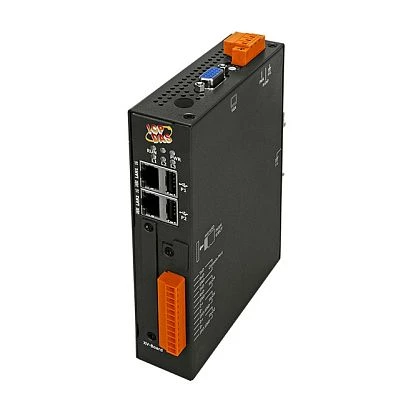

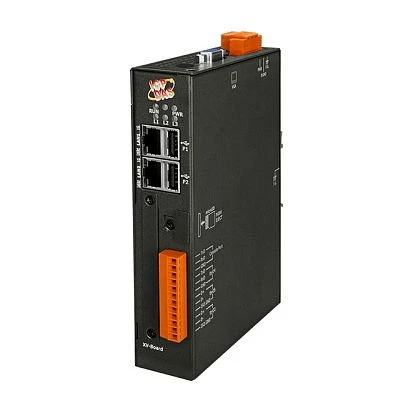

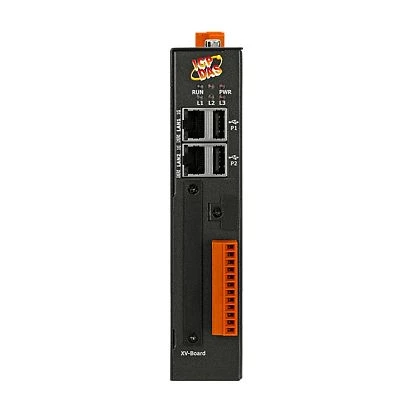

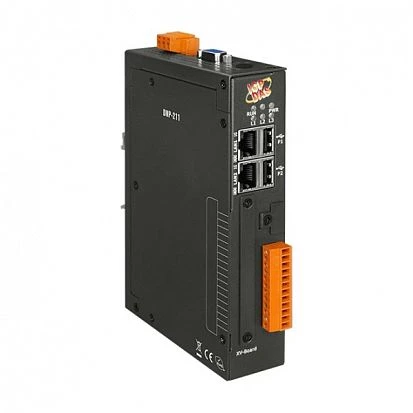

DNP3 Master to Modbus TCP Server Gateway, Cortex-A8 1GHz, 512MB DDR3 SDRAM, VGA, 2xGbE LAN, 2xRS-232, 2xRS-485, 2xUSB 2.0, 12-48VDC-in
DNP-211
ICP DAS
SKU: 09720300
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP client, DNP3 serial master, DNP3 ethernet server
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
35 mm
Depth
119 mm
Height
167 mm
Dimensions
Gross Weight
0.31 kg
