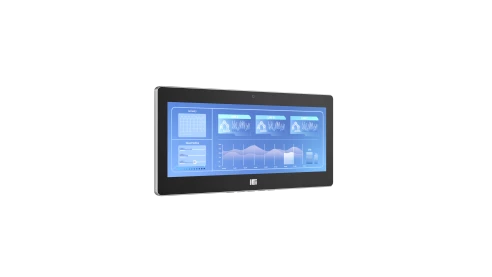

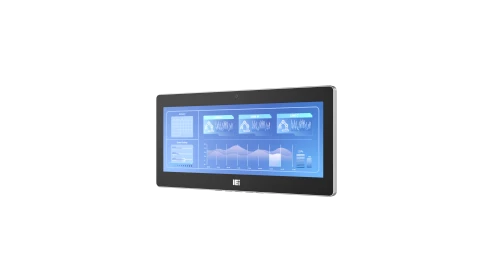

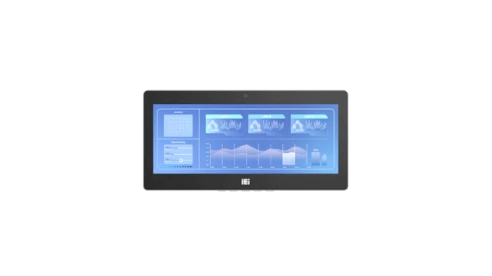

Industrial 12.3" TFT LCD Monitor, 1920x720, P-Cap touch, VGA, HDMI, DP, 9-36VDC-in
DM2-UW123JL
IEI
SKU: 11305100
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
12.3 "
Maximum resolution
1920x720 Dots
Brightness
850 Cd/m2
Contrast Ratio
1500~1
Input Interface
DisplayPort, HDMI, VGA
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
Power LED
Controls
On/Off

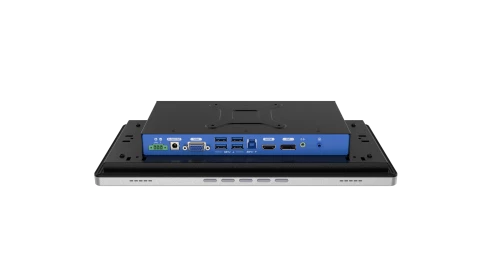

Connectors
Connectors
DB15 VGA, HDMI, 1xUSB, Line Out, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions and weight
Width
326.6 mm
Height
160.6 mm
Depth
49.4 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
Documentation
