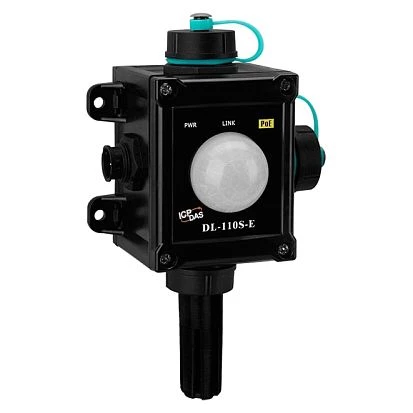

Remote Illuminance/Temperature/Humidity/Dew Point Data Logger Module with Ethernet/RS-485 Interface and PoE, Black Cover, RoHS
DL-110S-E
ICP DAS
SKU: 10129500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP67
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-485
1
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0.1 %
Accuracy (+/-)
3 %
Measuring Range
Calculated using temperature and relative humidity
Light Measurement Range
0...100,000 Lux
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
110 mm
Depth
156 mm
Height
67 mm
Dimensions
Gross Weight
0.5 kg
