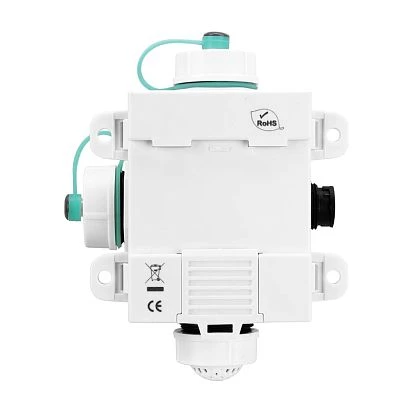

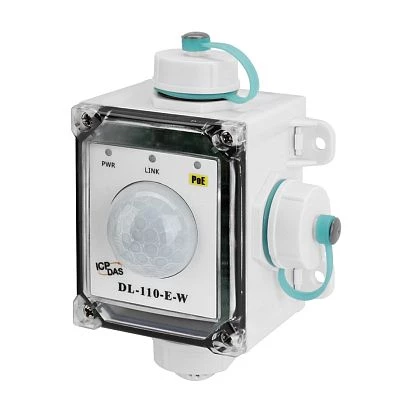

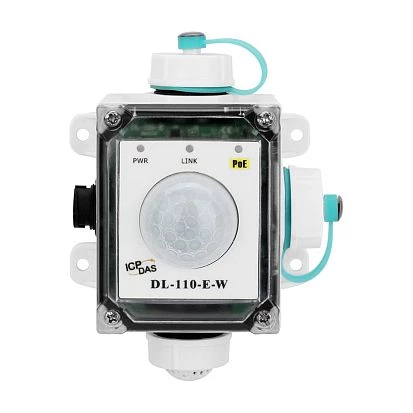

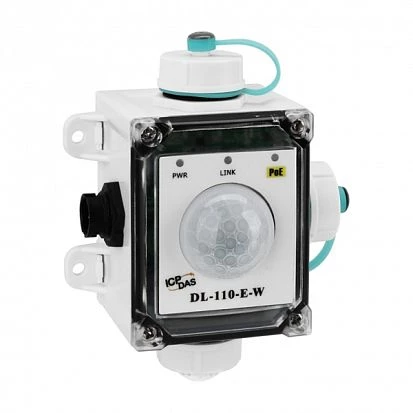

Remote Illuminance/Temperature/Humidity/Dew Point Data Logger Module with Ethernet/RS-485 Interface and PoE, White Cover, RoHS
DL-110-E-W
ICP DAS
SKU: 08763000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP65
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Light Measurement Range
0...100,000 Lux
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
100 mm
Depth
67 mm
Height
131 mm
Dimensions
Gross Weight
0.5 kg
