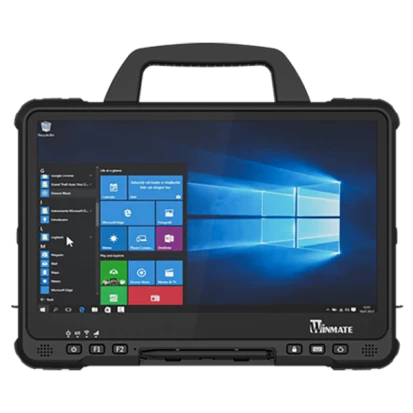

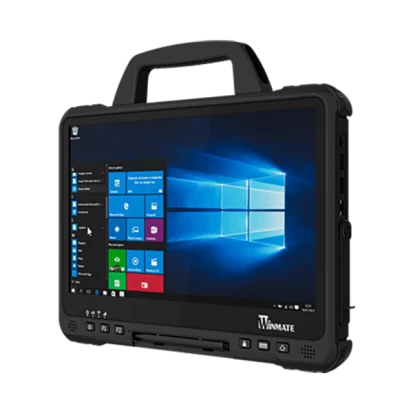

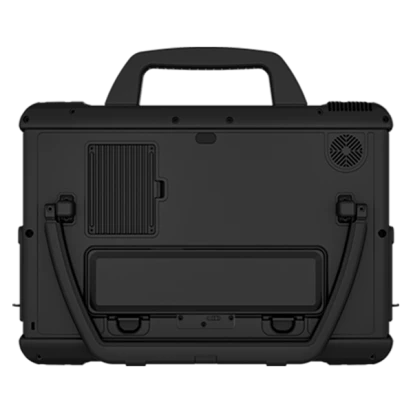

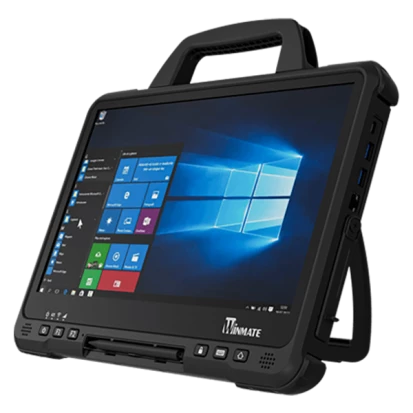

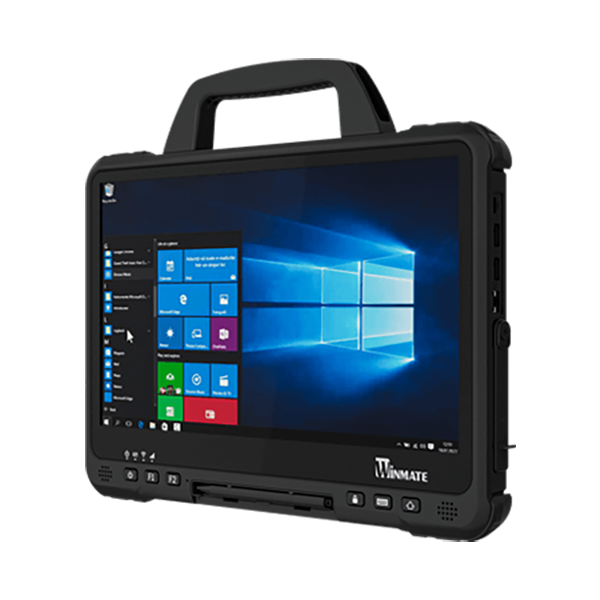

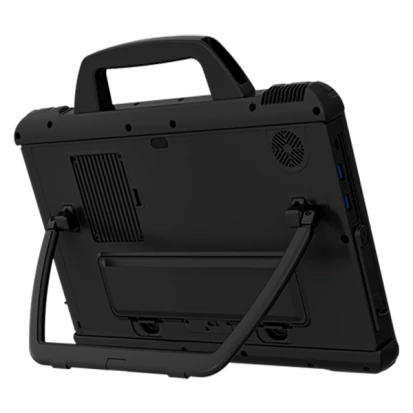

14" Rugged Tablet PC, 1920x1080, P-Cap Touch with Stylus, Intel Core i5-1235U CPU, 8GB DDR5 SODIMM RAM, 256GB SSD, 4xUSB, 2xUSB Type-C, WiFi/BT, 19VDC-in, Battery 10.9V 6700mAh, Win 11 IoT LTSC
D140
Winmate
SKU: 80019000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis, Rubber
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
6
USB v3.x
6
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
M.2
1
M.2 Form Factor
2280 M
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED, WLAN LED, WWAN LED
Controls
On/Off, Function Keys
Connectors
Connectors
RJ45 Ethernet, 4xUSB, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
6700 mA*h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows IoT Enterprise 11
Dimensions and weight
Width
355.55 mm
Height
250.71 mm
Depth
32.1 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
30-90%
Temperature (Storage)
-20~+60
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.3 kg
Gross Weight
2.05 kg
