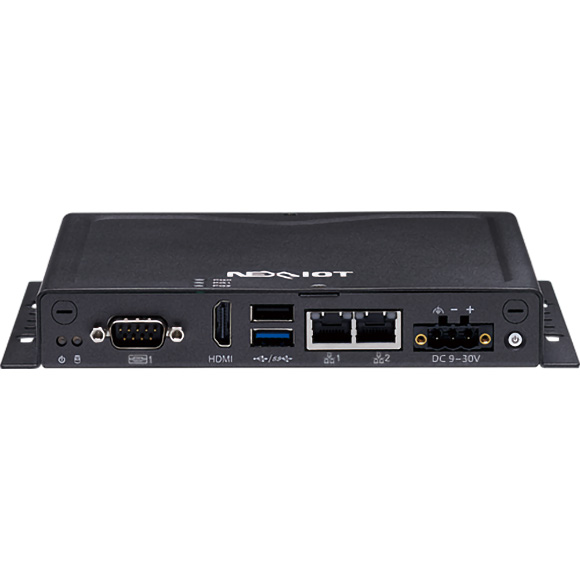

CPS-50-N02
NEXCOM
SKU: 57944500
IoT Gateway System, NXP i.MX8M Plus 1.6GHz SoC, 2GB LPDDR4 RAM, 32GB EMMC, HDMI, LVDS, 2xGbE LAN, 3xCOM, 1xUSB 3.0, 2xUSB 2.0, MIPI-CSI/DSI, 1xCAN, 8-bit GPIO, Micro SD slot, 1xMini-PCIe Full-Size, 1xM.2 3052/3042 Key-B, 1xM.2 2230 Key-E, 9-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
CPU
Processor Installed
NXP i.MX 8M Plus
Socket
CPU onboard
Max CPU frequency
1.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/485
2
RS-232/422/485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block), 2xCOM (terminal block), CAN (terminal block), GPIO (terminal block), MicroSD card slot
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Linux kernel 5.x
Dimensions and weight
Width
162 mm
Height
26 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Vibration
Random: 2Grms@5~500 Hz, IEC60068-2-64; Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Shock
EMMC/M.2: 50G@wall mount, half sine, 11ms (operation), IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
