CPS-50-N01
NEXCOM
SKU: 57611000

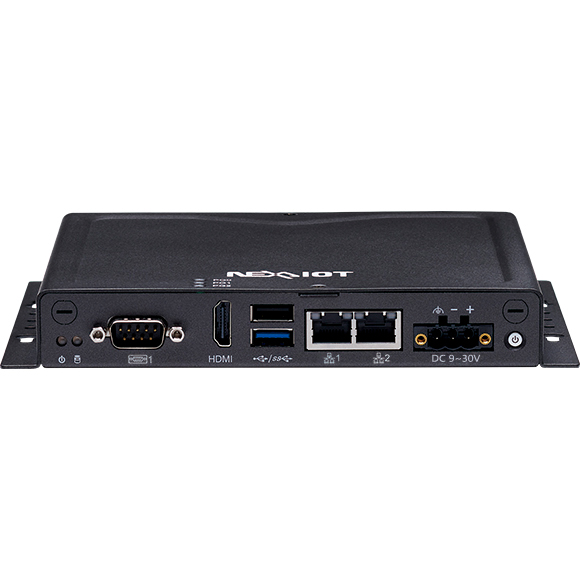

IoT Gateway System, NXP i.MX8M Plus 1.6GHz SoC, 2GB LPDDR4 RAM, 32GB EMMC, HDMI, LVDS, 2xGbE LAN, 1xRS232/422/485, 1xUSB 3.0, 1xUSB 2.0, 1xMIPI-CSI, 1xMIPI-DSI, Micro SD slot, 1xTouch connector, 1xMini-PCIe, 1xM.2 2230 Key-E, 9-30VDC-in, 0..55C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
Wi-Fi
Wi-Fi Standard
Yes
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Dimensions and weight
Width
162 mm
Depth
150 mm
Height
26 mm
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, SIM Card Slot, DC input (terminal block)
Standards and Certifications
Certifications
CE, FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
