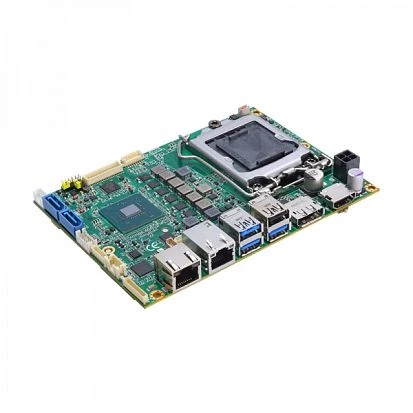

CPU Board with LGA1151 socket for 8th/9th generation Intel Core i7/i5/i3 CPU, Intel H310 Chipset, DP/HDMI/LVDS, 3xGB LAN, 1xCOM, 3xUSB 3.0, 3xUSB 2.0, 2xSATA-600, DIO, MiniPCIe, Audio, ZIO Connector
CAPA520PH3G-H310-ZIO
AXIOMTEK
SKU: 09041900
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Coffee Lake, Whiskey Lake
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, HDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
6
USB 2.0
3
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Extension Slots
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, 2xUSB 2.0
Connectors
HDMI, RJ45, 4xUSB, Display Port
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
