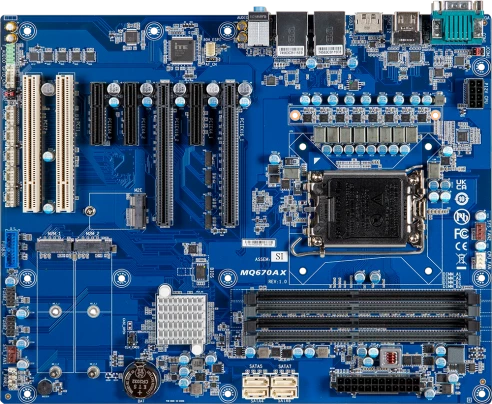

ATX Mainboard, LGA1700, Intel 12th/13th Gen Core i9/i7/i5/i3 CPU, Q670 Chipset, up to 128GB DDR4 RAM, 2xHDMI, DP, VGA, 2x2.5GbE LAN, 10xUSB, 6xCOM (2xRS232/422/485,4xRS232), Audio, 4xSATA, 3xM.2, 2xPCIe x16, 3xPCIe x4, 2xPCI, TPM 2.0, 0..60C
ATX-Q670A
GIGAIPC
SKU: 57726700
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xHDMI, VGA
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
10
USB 2.0
4
Audio
Audio Controller
Realtek ALC897
Drive interfaces
RAID Levels
1, 5, 10
Extension Slots
Total
10
PCI Express x16
2
PCI Express x4
3
M.2
3
PCI
2
Connectors
Internal Ports
4xSATA 3, 5xCOM
Connectors
24pin ATX, DB9, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, Display Port, 8-pin ATX
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
244 mm
Length
305 mm
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
